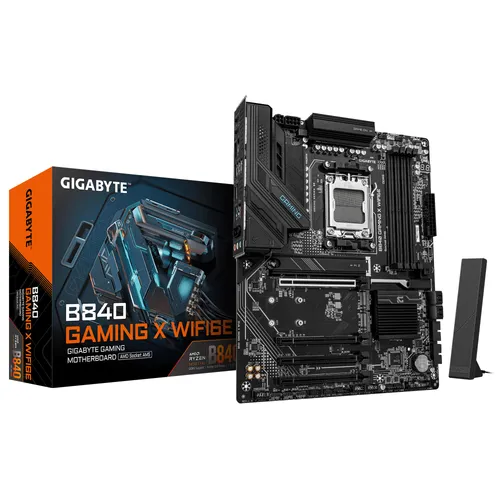

GIGABYTE B840 GAMING X WIFI6E ATX Mainboard - Sockel AM5

GIGABYTE B840 GAMING X WIFI6E ATX Mainboard - Sockel AM5
GIGABYTE B840 GAMING X WIFI6E ATX Mainboard - Sockel AM5
GIGABYTE B840 GAMING X WIFI6E ATX Mainboard - Sockel AM5
GIGABYTE B840 GAMING X WIFI6E ATX Mainboard - Sockel AM5
GIGABYTE B840 GAMING X WIFI6E ATX Mainboard - Sockel AM5
Item No.:2305-8RV, Manufacturer's no.:B840 GAMING X WIFI6E
154,90 €
excl. VAT
0% hire purchase
from 12,91 € monthly for 12 months
Delivery date unknown
Order together:
VPN-Service und Internet Security hinzufügen für mehr Daten- und Onlinesicherheit
0,00 €
extraSchutz Premium 24 Monate (bis 200 Euro, inkl. Diebstahlschutz)
44,90 €
Free return30 days return policy
Over 315,183 satisfied customers
Service & supportTel: 06172/3917-0
Description
Product info in your language are unfortunately not available at this time.
Specifications
Application area
User class
  • entry level
Audio
Channels
  • 7.1
Audio chipset
  • high-definition audio support
Certificates / guarantee
Manufacturer warranty
  • 3 years
Connectivity
Wireless transmission standards
  • WiFi
Wi-Fi standard
  • Wi-Fi 6E
WLAN frequency band
  • 2.4 GHz
  • 5 GHz
  • 6 GHz
Bluetooth type
  • 5.3
Connection type
  • wireless
  • wired
CPU
CPU socket
  • AM5
External connectors
USB type
  • USB 2.0
  • USB 3.2 Gen 1
  • USB 3.2 Gen 2
External connectors
  • LAN
Audio outputs
  • audio out
Audio inputs
  • analog audio in
Number of USB-C
  • 1
Number of USB-A
  • 7
Number of USB 2.0
  • 4
Number of USB 3.2
  • 4
Number of Displayport
  • 1
Number of HDMI
  • 1
Internal connectors
Int. connectors
  • SATA600
  • M.2
PCIe slots
  • 3.0
  • PCIe 4.0
Number of SATA 600
  • 4
PCIe generation
  • 4.0
Number of int. USB-C
  • 1
Number of int. USB 2.0
  • 4
Number of M.2
  • 3
Number of PCIe 3.0
  • 3
Number of PCIe 16x
  • 4
Number of int. USB 3.2
  • 4
Number of PCIe 4.0
  • 1
Network
Number of 2.5 Gigabit ports
  • 1
RAM
Pin count
  • 288 PIN
RAM clock speed
  • 7600 MHz
Available RAM slots
  • 4
Total RAM slots
  • 4
Maximum RAM
  • 256 GB
RAM standard
  • DDR5
RAM form factor
  • DIMM
Technical characteristics
RAID level
  • RAID (0/1/10)
Other properties
  • AMD RYZEN 9000 Series
  • AMD RYZEN 8000 series
  • AMD RYZEN 7000 series
Chipset
  • AMD B840
Form factor
  • ATX
Type
Motherboard form factor
  • ATX
Warranty notice
Any described warranty is supplied by the manufacturer of this article and is provided at least in germany. The full warranty information, including the coverage and requirements to claim the warranty is detailed on the manufacturers website. You can find a link to this site on our brand overview. More information about warranties.
