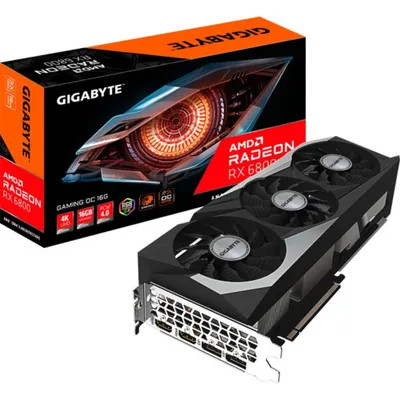

GIGABYTE Radeon RX6800 GAMING OC-16GD 16GB GDDR6 Speicher, AMD RDNA 2, HDMI 2.1
- AMD Radeon™ RX 6800, Overclocked
- 16.0 GB GDDR6 (256bit), Connection via PCIe 4.0
- Active Cooling (Tri-Slot), RGB beleuchtet
- 1x HDMI, 2x DisplayPort
- Power Supply: 2x 8pin, 650 W PSU recommended
- Card length approx. 286 mm
Item No.:2E21-320, Manufacturer's no.:GV-R68GAMING OC-16GD
Available since: January 2021
Item No.:2E21-320, Manufacturer's no.:GV-R68GAMING OC-16GD
569,00 €
excl. VAT
TIPOrder as well
AMD Ryzen 7 5800X Box + 219,00 €
Intel Core i9-12900 Boxed + 531,00 €
Description
The WINDFORCE 3X cooling system features 3X80mm unique blade fans, alternate spinning, 5 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
- Powered by RDNA2 Radeon RX 6800
- Integrated with 16GB GDDR6 256-bit memory interface
- WINDFORCE 3X Cooling System with alternate spinning fans
- Screen cooling
- Graphene nano lubricant
- RGB Fusion 2.0
- Dual BIOS
- Protection metal back plate
- Alternate Spinning
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure. - Smooth airflow
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure. - 3D Active Fan
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. - Unique blade fan
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface. - Graphene nano lubricant
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter. - Screen cooling
Extended heatsink design allows air flow to pass through, providing better heat dissipation. - Heat pipes direct touch
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling. - RGB Fusion 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices. - Protection metal back plate
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection. - Dual BIOS
Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode. - Extreme durability and overclocking
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life. - Friendly PCB design
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build. - AORUS engine
The cutting-edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game's requirements.
Specifications
- ChipsetAMD Radeon™ RX 6800
- GPU Base Clock1775 MHz
- GPU Boost Clock2155 MHz
- OverclockedYes
- Performance LevelEnthusiast
- VRAM16.0 GB
- VRAM TypeGDDR6
- Bus Width256bit
- ConnectorPCIe 4.0
- HDMI1
- miniHDMINo
- DVINo
- VGANo
- Display Port2
- miniDisplayPortNo
- HDCPYes
- SLINo
- CrossfireNo
- DirectX12
- Cooling TypeActive Cooling
- Cooler WidthTri-Slot
- GPU Length286 mm
- Low ProfileNo
- Illuminationmulticoloured (RGB)
- Power Connector2x 8pin
- Recommended power supply650 W
