Product Description |

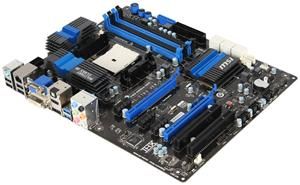

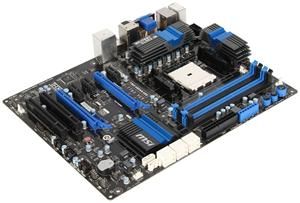

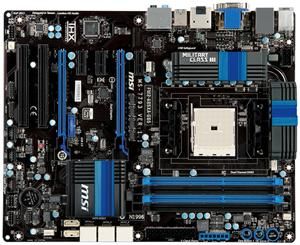

MSI FM2-A85XA-G65 - motherboard - ATX - Socket FM2 - AMD A85X |
| |
EAN |
4719072274993
|
| |
Product Type |
Motherboard - ATX |
| |
Chipset Type |
AMD A85X |
| |
Compatible Processors |
A8 series, A6 series, A4 series, A10 series |
| |
Audio |
HD Audio (8-channel) |
| |
Processor Socket |
1 x Socket FM2 |
| |
RAM Supported |
4 DIMM slots - DDR3 unbuffered |
| |
Storage Ports |
8 x SATA-600 (RAID) |
| |
LAN |
Gigabit Ethernet |
| |
USB / FireWire Ports |
2 x USB 3.0 + 4 x USB 2.0 + (2 x USB 3.0 + 6 x USB 2.0 via headers) |
| |
Max Allocated RAM Size |
1024 MB |
| |
Max RAM Size |
32 GB |
|
| Supported RAM |
| |
Registered or Buffered |
Unbuffered |
| |
Max Size |
32 GB |
| |
Features |
Dual channel memory architecture |
| |
Bus Clock |
1600 MHz, 1333 MHz, 1066 MHz, 1866 MHz, 2133 MHz |
| |
Technology |
DDR3 |
| Graphics |
| |
Max Allocated RAM Size |
1024 MB |
| LAN |
| |
Network Interfaces |
Gigabit Ethernet |
| |
Network Controller |
Realtek RTL8111E |
| Features |
| |
BIOS Features |
M-Flash, UEFI BIOS, MSI ClickBIOS II |
| |
Hardware Features |
AMD Cool 'n' Quiet Technology, USB Safeguard, HDCP compliant, OC Genie II, MSI Winki 3, Super Charger, AMD Radeon Dual Graphics, MSI Military Class III, AMD CrossFireX technology support, AMD Hybrid CrossFireX technology support, DigitALL Power |
| Audio |
| |
Compliant Standards |
High Definition Audio |
| |
Audio Codec |
Realtek ALC892 |
| |
Type |
HD Audio (8-channel) |
| Miscellaneous |
| |
Width |
30.5 cm |
| |
Depth |
24.5 cm |
| |
Software Included |
MSI Live Update 5 |
| Expansion / Connectivity |
| |
Power Connectors |
24-pin main power connector, 8-pin ATX12V connector |
| |
Expansion Slot(s) |
1 x CPU 1 x PCIe 2.0 x16 (x16 mode (x8 mode if neighbour slot is occupied)) 1 x PCIe 2.0 x16 (x8 mode) 3 x PCIe 2.0 x1 2 x PCI 4 x DIMM 240-pin (1.5 V) |
| |
Storage Interfaces |
SATA-600 - connector(s): 8 x 7pin Serial ATA - 8 Device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| |
Interfaces |
1 x PS/2 keyboard / mouse 1 x TOSLINK 1 x DVI-D (dual link) 1 x HDMI 1 x VGA 1 x DisplayPort 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-out (side surround) - mini-jack 1 x LAN (Gigabit Ethernet) 2 x USB 3.0 4 x USB 2.0 |
| |
Internal Interfaces |
6 x USB 2.0 1 x audio - header 2 x USB 3.0 |
| General |
| |
Max Processors Qty |
1 |
| |
Product Type |
Motherboard - ATX |
| |
Processor Socket |
Socket FM2 |
| |
Compatible Processors |
A8 series, A6 series, A4 series, A10 series |
| |
Chipset Type |
AMD A85X |
