Product Description |

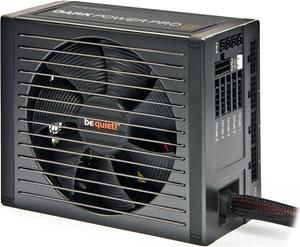

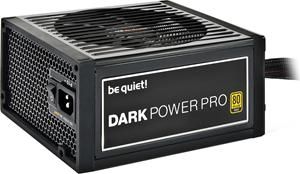

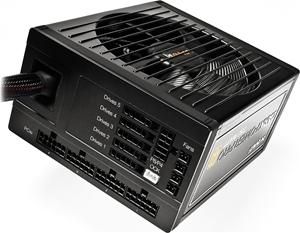

Be quiet! Dark Power PRO 10 750W - power supply - 750 Watt |
| |
EAN |
4260052182215
|
| |
Manufacturer Warranty |
5 years warranty (24 months implied warranty by computeruniverse ) |
| |
Dimensions (WxDxH) |
15 cm x 18 cm x 8.6 cm |
| |
Weight |
3.76 kg |
| |
Device Type |
Power supply - active Power Factor Correction (PFC) - internal |
| |
Output Connector(s) |
1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin EPS12V 2 x power 8 pin +12V with detachable 4 pin section 10 x 4 PIN internal power 9 x 15 pin Serial ATA power 6 x 8 pin PCI Express power with detachable 2 pin section 1 x 6 pin PCI Express power 2 x 4 PIN mini-power connector 1 x power 4 pin ATX12V connector |
| |

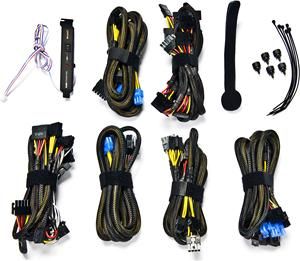

Included Accessories |
Cable ties, thumbscrews |
| |
Specification Compliance |
ATX12V 2.31/ EPS12V 2.92 |
| |
Environmental Standards |
ENERGY STAR |
| |
Cooling System |
135mm fan |
| |
Power Capacity |
750 Watt |
| |
80 PLUS Certification |
80 PLUS Gold |
|
| Environmental Standards |
| |
ENERGY STAR |
Yes |
| Dimensions & Weight (Shipping) |
| |
Shipping Depth |
40 cm |
| |
Shipping Weight |
4.3 kg |
| |
Shipping Width |
27.2 cm |
| |
Shipping Height |
11.8 cm |
| Dimensions & Weight |
| |
Depth |
18 cm |
| |
Height |
8.6 cm |
| |
Width |
15 cm |
| |
Weight |
3.76 kg |
| Power Device |
| |
Power Capacity |
750 Watt |
| |
Frequency Required |
50 - 60 Hz |
| |
Input Voltage Range |
AC 100 - 240 V |
| |
Efficiency |
93% |
| |
80 PLUS Certification |
80 PLUS Gold |
| |
Power Output Connectors Details |
1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin EPS12V 2 x power 8 pin +12V with detachable 4 pin section 10 x 4 PIN internal power 9 x 15 pin Serial ATA power 6 x 8 pin PCI Express power with detachable 2 pin section 1 x 6 pin PCI Express power 2 x 4 PIN mini-power connector 1 x power 4 pin ATX12V connector |
| |
Output Current |
+3.3V - 25 A +5V - 25 A +12V1 - 25 A +12V2 - 25 A +12V3 - 30 A +12V4 - 30 A -12V - 0.5 A +5VSB - 3 A |
| Environmental Parameters |
| |
Max Operating Temperature |
40 °C |
| |
Sound Emission |
11.8 dBA |
| Miscellaneous |
| |
Cooling System |
135mm fan |
| |
Cables Included |
1 x power cable - external - 1.5 m |
| |
MTBF |
300,000 hours |
| |
Included Accessories |
Cable ties, thumbscrews |
| |
Features |
Over current protection, over voltage protection, overpower protection, SLI ready, undervoltage protection, short-circuit protection, 4 x 12V rail, temperature controlled fan, ball bearing cooling fan, CrossFireX ready, thermal protection |
| |
Compliant Standards |
TUV, FEMKO, FIMKO, NEMKO, SEMKO, CB, FCC, RoHS, WEEE, cTUVus, ErP Ready |
Manufacturer Warranty (24 months implied warranty by computeruniverse ) |
| |
Service & Support |
5 years warranty |
| |
Service & Support Details |
Limited warranty - 5 years |
| General |
| |
Colour |
Black |
| |
Device Type |
Power supply - active Power Factor Correction (PFC) - internal |
| |
Specification Compliance |
ATX12V 2.31/ EPS12V 2.92 |
