Product Description |

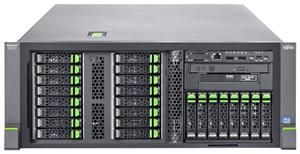

Fujitsu PRIMERGY RX350 S7 - Xeon E5-2630 2.3 GHz - Monitor : none. |
| |
EAN |
4051554413576
|
| |
Form Factor |
Rack-mountable - 4U |
| |
Manufacturer Warranty |
3 years warranty - on-site (24 months implied warranty by computeruniverse ) |
| |
Dimensions (WxDxH) |
48.2 cm x 73.6 cm x 17.7 cm |
| |
Weight |
35 kg |
| |
Processor |
1 x Intel Xeon E5-2630 / 2.3 GHz (2.8 GHz) (6-core) |
| |
Hard Drive |
No HDD |
| |
Networking |
Gigabit LAN |
| |
Power |
AC 120/230 V (50/60 Hz) |
| |
RAM |
8 GB (installed) / 768 GB (max) - DDR3 SDRAM - Advanced ECC |
| |
Storage Controller |
RAID (SAS-2) ; SATA (SATA-300) |
| |
Type |
Server |
| |
Cache Memory |
15 MB L3 Cache |
| |
Optical Storage |
DVD±RW (±R DL) / DVD-RAM |
| |
Monitor |
None. |
| |
Cache Per Processor |
15 MB |
| |
Processor Main Features |
Intel Turbo Boost Technology 2 |
| |
Processor Socket |
LGA2011 Socket |
| |
Server Storage Bays |
Hot-swap 2.5" |
| |
Server Scalability |
2-way |
|
| Processor / Chipset |
| |
CPU Qty |
1 |
| |
Max CPU Qty |
2 |
| |
CPU Upgradability |
Upgradable |
| |
64-bit Computing |
Yes |
| |
Max Turbo Speed |
2.8 GHz |
| |
Number of Cores |
6-core |
| |
Processor Main Features |
Intel Turbo Boost Technology 2 |
| |
CPU Socket |
LGA2011 Socket |
| |
CPU |
Intel Xeon E5-2630 / 2.3 GHz |
| Dimensions & Weight |
| |
Weight |
35 kg |
| |
Width |
48.2 cm |
| |
Height |
17.7 cm |
| |
Depth |
73.6 cm |
| Hard Drive |
| |
Type |
No HDD |
| Storage Controller (2nd) |
| |
Channel Qty |
2 |
| |
Type |
1 x Serial ATA - integrated |
| |
Controller Interface Type |
SATA-300 |
| Graphics Controller |
| |
Type |
Integrated |
| |
Video Interfaces |
VGA |
| Monitor |
| |
Monitor Type |
None. |
| Operating System / Software |
| |
Software |
ServerView |
| Optical Storage |
| |
Type |
DVD±RW (±R DL) / DVD-RAM - SATA |
| Cache Memory |
| |
Cache Per Processor |
15 MB |
| |
Installed Size |
L3 Cache - 15 MB |
| Storage Controller |
| |
Buffer Size |
512 MB |
| |
Channel Qty |
8 |
| |
Type |
1 x RAID - integrated |
| |
RAID Level |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| |
Controller Interface Type |
SAS-2 |
| Environmental Parameters |
| |
Min Operating Temperature |
10 °C |
| |
Max Operating Temperature |
35 °C |
| |
Humidity Range Operating |
10 - 85% (non-condensing) |
| Power |
| |
Installed Qty |
2 |
| |
Max Supported Qty |
4 |
| |
Device Type |
Power supply - hot-plug |
| |
Power Provided |
800 Watt |
| |
Nominal Voltage |
AC 120/230 V (50/60 Hz) |
| Miscellaneous |
| |
Features |
Redundant fans |
| |
Compliant Standards |
FCC Class A certified, CSA, C-Tick, BSMI CNS 13438 Class A, GS, CB, RoHS, WEEE |
| Networking |
| |
Type |
Integrated |
| |
Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| |
Remote Management Protocol |
IPMI 2.0 |
| |
Ethernet Ports |
2 x Gigabit Ethernet |
| |
Remote Management Controller |
Integrated Remote Management Controller (iRMC S3) |
| RAM |
| |
Technology |
DDR3 SDRAM - Advanced ECC |
| |
Installed Size |
8 GB / 768 GB (max) |
| |
Features |
Registered, hot-swappable, Memory Mirroring, quad channel memory architecture |
Manufacturer Warranty (24 months implied warranty by computeruniverse ) |
| |
Service & Support |
3 years warranty |
| |
Service & Support Details |
Limited warranty - parts and labour - 3 years - on-site |
| Expansion / Connectivity |
| |
Interfaces |
10 x USB 2.0 (2 front, 4 rear, 2 internal) 1 x VGA 2 x LAN (Gigabit Ethernet) 1 x management (NIC) 1 x serial |
| |
Slots |
2 (total) / 1 (free) x CPU 24 memory 2 (total) / 2 (free) x PCIe 3.0 x8 - full-height (x4 mode) 4 (total) / 4 (free) x PCIe 3.0 x8 - full-height 1 (total) / 1 (free) x PCIe 3.0 x16 - full-height (x8 mode) 2 (total) / 2 (free) x PCIe 3.0 x16 - full-height 1 (total) / 1 (free) x PCIe 2.0 x8 - full-height (x4 mode) |
| |
Bays |
8 (total) / 8 (free) x hot-swap 2.5" 3 (total) / 2 (free) x external 5.25" |
| General |
| |
Type |
Server |
| |
Hot-Swap Bays Qty |
8 |
| |
Front Accessible Bays Qty |
3 |
| |
Server Scalability |
2-way |
| |
Product Form Factor |
Rack-mountable - 4U |
