Product Description |

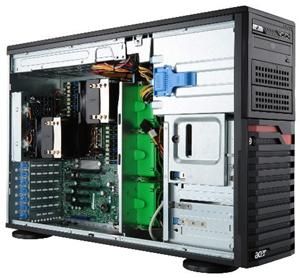

Acer AT350 F1 - Xeon E5620 2.4 GHz - Monitor : none. |
| |
EAN |
4717276741303
|
| |
Form Factor |
Tower - 4U |
| |
Manufacturer Warranty |
3 years warranty - on-site (24 months implied warranty by computeruniverse ) |
| |
Dimensions (WxDxH) |
43.4 cm x 64.8 cm x 17.8 cm |
| |
Processor |
1 x Intel Xeon E5620 / 2.4 GHz (Quad-Core) |
| |
Hard Drive |
No HDD |
| |
Networking |
Gigabit LAN |
| |
Power |
AC 120/230 V |
| |
RAM |
8 GB (installed) / 192 GB (max) - DDR3 SDRAM |
| |
Storage Controller |
RAID (SAS-2) - PCI Express 2.0 x8 (LSI MegaRAID SAS 9260-8i) ; SATA (SATA-300) |
| |
Type |
Server |
| |
Cache Memory |
12 MB L3 Cache |
| |
Optical Storage |
DVD-RW |
| |
Monitor |
None. |
| |
OS Provided |
No operating system |
| |
Cache Per Processor |
12 MB |
| |
Server Storage Bays |
Hot-swap 3.5" |
| |
Power Redundancy |
Optional |
| |
Environmental Standards |
ENERGY STAR Qualified |
| |
Video Memory |
16 MB |
|
| Processor / Chipset |
| |
CPU Qty |
1 |
| |
Max CPU Qty |
2 |
| |
CPU Upgradability |
Upgradable |
| |
64-bit Computing |
Yes |
| |
Number of Cores |
Quad-Core |
| |
Chipset Type |
Intel 5520 |
| |
CPU |
Intel Xeon E5620 / 2.4 GHz |
| Environmental Standards |
| |
ENERGY STAR Qualified |
Yes |
| Mouse |
| |
Interface |
USB |
| |
Features |
Scroll |
| Dimensions & Weight |
| |
Width |
43.4 cm |
| |
Height |
17.8 cm |
| |
Depth |
64.8 cm |
| Input Device |
| |
Type |
Mouse |
| Hard Drive |
| |
Type |
No HDD |
| Storage Controller (2nd) |
| |
Channel Qty |
6 |
| |
RAID Level |
RAID 0, RAID 1, RAID 5, RAID 10 |
| |
Type |
1 x Serial ATA - integrated |
| |
Controller Interface Type |
SATA-300 |
| Graphics Controller |
| |
Type |
Integrated |
| |
Video Memory |
16 MB |
| |
Video Interfaces |
VGA |
| Monitor |
| |
Monitor Type |
None. |
| Operating System / Software |
| |
OS Provided |
No operating system |
| |
Software |
Acer Smart Server Manager, Acer Smart Setup |
| Optical Storage |
| |
Type |
DVD-RW - SATA |
| Cache Memory |
| |
Cache Per Processor |
12 MB |
| |
Installed Size |
L3 Cache - 12 MB |
| Storage Controller |
| |
Buffer Size |
512 MB |
| |
Channel Qty |
8 |
| |
RAID Level |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| |
Type |
1 x RAID - plug-in card - PCI Express 2.0 x8 |
| |
Storage Controller Name |
LSI MegaRAID SAS 9260-8i |
| |
Controller Interface Type |
SAS-2 |
| Environmental Parameters |
| |
Min Operating Temperature |
10 °C |
| |
Max Operating Temperature |
35 °C |
| |
Humidity Range Operating |
8 - 90% (non-condensing) |
| Power |
| |
Installed Qty |
1 |
| |
Max Supported Qty |
2 |
| |
Power Redundancy |
Optional |
| |
Device Type |
Power supply - hot-plug |
| |
Power Provided |
720 Watt |
| |
Nominal Voltage |
AC 120/230 V |
| |
Power Redundancy Scheme |
1+1 (with optional power supply) |
| Miscellaneous |
| |
Compliant Standards |
APM 1.2, FCC Class A certified, UL, CISPR 22 Class A, cUL, EN 61000-3-2, EN55022, GS, NEMKO, EN 61000-3-3, 80 PLUS Gold, ACPI 3.0b, BSMI Class A |
| Networking |
| |
Type |
Integrated |
| |
Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| |
Ethernet Ports |
2 x Gigabit Ethernet |
| |
Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| |
Features |
Wake on LAN (WoL), PXE support |
| |
Ethernet Controller |
Intel 82576EB |
| RAM |
| |
Configuration Features |
2 x 4 GB |
| |
Installed Size |
8 GB / 192 GB (max) |
| |
Technology |
DDR3 SDRAM |
| |
Features |
Registered, Memory Mirroring, Memory Sparing |
| |
RAM Supported |
192 GB - registered 48 GB - unbuffered - ECC |
Manufacturer Warranty (24 months implied warranty by computeruniverse ) |
| |
Service & Support |
3 years warranty |
| |
Service & Support Details |
Limited warranty - 3 years - on-site - response time: next business day |
| Expansion / Connectivity |
| |
Interfaces |
2 x LAN (Gigabit Ethernet) 1 x VGA 6 x USB 2.0 (2 in front) 1 x serial 1 x management 1 x PS/2 keyboard 1 x PS/2 mouse |
| |
Slots |
18 (total) / 16 (free) x memory 2 (total) / 1 (free) x CPU 2 PCIe 2.0 x8 - full-height (x4 mode) 2 PCIe 2.0 x16 - full-height (x8 mode) 1 Flex I/O 1 PCIe x8 - full-height (x4 mode) |
| |
Bays |
4 (total) / 4 (free) x hot-swap 3.5" 3 (total) / 2 (free) x external 5.25" |
| General |
| |
Type |
Server |
| |
Front Accessible Bays Qty |
3 |
| |
Hot-Swap Bays Qty |
4 |
| |
Product Form Factor |
Tower - 4U |
