Product Description |

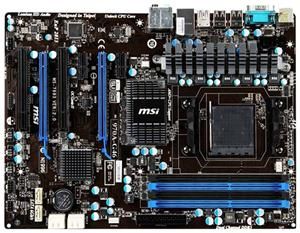

MSI 970A-G46 - motherboard - ATX - Socket AM3+ - AMD 970 |
| |
EAN |
4719072251192
|
| |
Product Type |
Motherboard - ATX |
| |
Chipset Type |
AMD 970 / AMD SB950 |
| |
Compatible Processors |
Sempron, Phenom II X3, Phenom II X2, Phenom II X4, Phenom II X6, FX |
| |
Audio |
HD Audio (8-channel) |
| |
Processor Socket |
1 x Socket AM3+ |
| |
Microsoft Certification |
Compatible with Windows 7 |
| |
RAM Supported |
4 DIMM slots - DDR3 unbuffered |
| |
Storage Ports |
6 x SATA-600 (RAID) |
| |
LAN |
Gigabit Ethernet |
| |
USB / FireWire Ports |
2 x USB 3.0 + 6 x USB 2.0 + (6 x USB 2.0 via headers) |
| |
Data Bus Transfer Rate |
4.8 GT/s |
| |
Max RAM Size |
32 GB |
|
| Supported RAM |
| |
Registered or Buffered |
Unbuffered |
| |
Max Size |
32 GB |
| |
Features |
Dual channel memory architecture |
| |
Bus Clock |
1600 MHz, 1333 MHz, 1066 MHz, 800 MHz, 1866 MHz |
| |
Technology |
DDR3 |
| |
Speed |
PC3-12800, PC3-10600, PC3-8500, PC3-6400, PC3-14900 |
| LAN |
| |
Network Interfaces |
Gigabit Ethernet |
| |
Network Controller |
Realtek RTL8111E |
| Features |
| |
BIOS Features |
M-Flash, UEFI BIOS, MSI ClickBIOS II |
| |
Hardware Features |
Chassis intrusion detection, AMD Cool 'n' Quiet Technology, Trusted Platform Module (TPM), NVIDIA SLI Technology Support, ATI CrossFire technology support, All-Solid Capacitor motherboard Design, audio jack detect technology, MSI Active Phase Switching (APS), OC Genie II, MSI Winki 3 |
| Audio |
| |
Compliant Standards |
High Definition Audio |
| |
Audio Codec |
Realtek ALC892 |
| |
Type |
HD Audio (8-channel) |
| Miscellaneous |
| |
Width |
30.5 cm |
| |
Depth |
22.5 cm |
| |
Compatible with Windows 7 |
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| |
Software Included |
Drivers & Utilities, i-Charger, MSI Live Update 5 |
| Expansion / Connectivity |
| |
Power Connectors |
24-pin main power connector, 8-pin ATX12V connector |
| |
Storage Interfaces |
AMD SB950 : SATA-600 - connector(s): 6 x 7pin Serial ATA - 6 Device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| |
Internal Interfaces |
1 x audio 6 x USB 2.0 1 x SPDIF out |
| |
Expansion Slot(s) |
1 x CPU 4 x DIMM 240-pin (1.5 V) 2 x PCIe 2.0 x16 2 x PCIe 2.0 x1 2 x PCI (3.3 V/ 5 V) |
| |
Interfaces |
1 x TOSLINK 1 x PS/2 keyboard / mouse 1 x serial 6 x USB 2.0 2 x USB 3.0 1 x LAN (Gigabit Ethernet) 1 x audio line-out - mini-jack 1 x audio line-in - mini-jack 1 x microphone - mini-jack 1 x audio line-out (side surround) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack |
| General |
| |
Max Processors Qty |
1 |
| |
Max Bus Speed |
2400 MHz |
| |
Product Type |
Motherboard - ATX |
| |
Processor Socket |
Socket AM3+ |
| |
Data Bus Transfer Rate |
4.8 GT/s |
| |
Chipset Type |
AMD 970 / AMD SB950 |
| |
Compatible Processors |
Sempron, Phenom II X3, Phenom II X2, Phenom II X4, Phenom II X6, FX |
