Product Description |

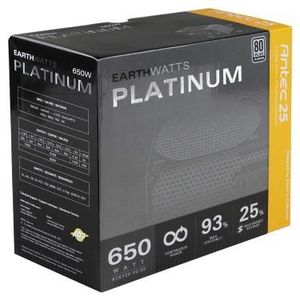

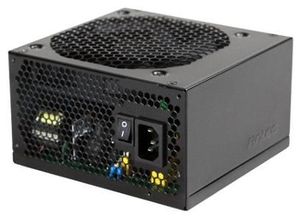

Antec EarthWatts EA-650 Platinum - power supply - 650 Watt |
| |
EAN |
0761345047609
|
| |
Manufacturer Warranty |
3 years warranty (24 months implied warranty by computeruniverse ) |
| |
Dimensions (WxDxH) |
15 cm x 14 cm x 8.6 cm |
| |
Weight |
2 kg |
| |
Localisation |
Europe |
| |
Device Type |
Power supply - active Power Factor Correction (PFC) - internal |
| |
Input Voltage |
AC 100-240 V |
| |
Output Connector(s) |
1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section 4 x 4 PIN internal power 2 x 8 pin PCI Express power with detachable 2 pin section 6 x 7 pin Serial ATA 1 x 4 PIN mini-power connector |
| |
Specification Compliance |
ATX12V 2.32/ EPS12V 2.92 |
| |
Cooling System |
120 mm fan |
| |
Power Capacity |
650 Watt |
| |
80 PLUS Certification |
80 PLUS Platinum |
|
| Dimensions & Weight |
| |
Height |
8.6 cm |
| |
Depth |
14 cm |
| |
Width |
15 cm |
| |
Weight |
2 kg |
| Power Device |
| |
Input Voltage Margin |
± 10% |
| |
Power Capacity |
650 Watt |
| |
Frequency Required |
50 - 60 Hz |
| |
Input Voltage |
AC 100-240 V |
| |
Efficiency |
93% |
| |
80 PLUS Certification |
80 PLUS Platinum |
| |
Power Output Connectors Details |
1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section 4 x 4 PIN internal power 2 x 8 pin PCI Express power with detachable 2 pin section 6 x 7 pin Serial ATA 1 x 4 PIN mini-power connector |
| |
Output Current |
+5V - 18 A +3.3V - 20 A +12V1 - 30 A +12V2 - 30 A +12V3 - 30 A +12V4 - 30 A -12V - 0.3 A +5VSB - 3 A |
| Environmental Parameters |
| |
Min Operating Temperature |
0 °C |
| |
Max Operating Temperature |
50 °C |
| Miscellaneous |
| |
Cooling System |
120 mm fan |
| |
Features |
Thermal monitoring, over current protection, over voltage protection, overpower protection, dual 12V rails, short-circuit protection, dual ball bearing cooling fan, surge & inrush protection, no load operation & brown-out protection |
| |
Compliant Standards |
UL, TUV, C-Tick, BSMI, cUL, CB, CCC, FCC, RoHS, KCC, GOST-R, ERP |
Manufacturer Warranty (24 months implied warranty by computeruniverse ) |
| |
Service & Support |
3 years warranty |
| |
Service & Support Details |
Limited warranty - 3 years |
| General |
| |
Localisation |
Europe |
| |
Device Type |
Power supply - active Power Factor Correction (PFC) - internal |
| |
Specification Compliance |
ATX12V 2.32/ EPS12V 2.92 |
