Product Description |

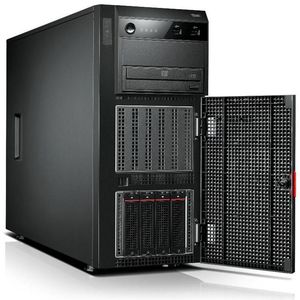

Lenovo ThinkServer TS430 0441 - Xeon E3-1220 3.1 GHz - Monitor : none. |
| |
EAN |
0886843368558
|
| |
Form Factor |
Tower - 5U |
| |
Manufacturer Warranty |
3 years warranty (24 months implied warranty by computeruniverse ) |
| |
Dimensions (WxDxH) |
19.5 cm x 59.5 cm x 43 cm |
| |
Weight |
28 kg |
| |
Processor |
1 x Intel Xeon E3-1220 / 3.1 GHz (3.4 GHz) (Quad-Core) |
| |
Hard Drive |
2 x 500 GB (hot-swap) - SATA-300 |
| |
Networking |
Gigabit LAN |
| |
RAM |
4 GB (installed) / 32 GB (max) - DDR3 SDRAM - ECC - 1333 MHz - PC3-10600 |
| |
Storage Controller |
SATA ; SATA (SATA-300) |
| |
Graphics Controller |
ASPEED AST2150 |
| |
Type |
Server |
| |
Localisation |
German / Germany |
| |
Cache Memory |
8 MB L3 Cache |
| |
Optical Storage |
DVD±RW |
| |
Monitor |
None. |
| |
OS Provided |
No operating system |
| |
Cache Per Processor |
8 MB |
| |
Processor Main Features |
Intel Extended Memory 64 Technology, Intel Execute Disable Bit, Intel Virtualization Technology, Intel Turbo Boost Technology 2 |
| |
Processor Socket |
LGA1155 Socket |
| |
Server Storage Bays |
Hot-swap 3.5" |
| |
Server Scalability |
1-way |
| |
Power Redundancy |
Optional |
|
| Processor / Chipset |
| |
CPU Qty |
1 |
| |
Max CPU Qty |
1 |
| |
64-bit Computing |
Yes |
| |
Max Turbo Speed |
3.4 GHz |
| |
Number of Cores |
Quad-Core |
| |
CPU Socket |
LGA1155 Socket |
| |
Chipset Type |
Intel C202 |
| |
CPU |
Intel Xeon E3-1220 / 3.1 GHz |
| |
Processor Main Features |
Intel Extended Memory 64 Technology, Intel Execute Disable Bit, Intel Virtualization Technology, Intel Turbo Boost Technology 2 |
| Dimensions & Weight |
| |
Height |
43 cm |
| |
Width |
19.5 cm |
| |
Depth |
59.5 cm |
| |
Weight |
28 kg |
| Hard Drive |
| |
Spindle Speed |
7200 rpm |
| |
Capacity |
2 x 500 GB |
| |
Interface Type |
SATA-300 |
| |
Type |
HDD - hot-swap |
| Storage Controller (2nd) |
| |
RAID Level |
RAID 0, RAID 1, RAID 10 |
| |
Type |
1 x Serial ATA - integrated |
| |
Controller Interface Type |
SATA-300 |
| Graphics Controller |
| |
Type |
Integrated |
| |
Video Interfaces |
VGA |
| |
Graphics Processor |
ASPEED AST2150 |
| Monitor |
| |
Monitor Type |
None. |
| Operating System / Software |
| |
OS Provided |
No operating system |
| Optical Storage |
| |
Type |
DVD±RW - SATA |
| Cache Memory |
| |
Cache Per Processor |
8 MB |
| |
Installed Size |
L3 Cache - 8 MB |
| Storage Controller |
| |
RAID Level |
RAID 0, RAID 1, RAID 10 |
| |
Type |
1 x SATA - integrated |
| Power |
| |
Installed Qty |
1 |
| |
Max Supported Qty |
2 |
| |
Power Redundancy |
Optional |
| |
Device Type |
Power supply - hot-plug |
| |
Power Provided |
450 Watt |
| |
Power Redundancy Scheme |
1+1 (with optional power supply) |
| Miscellaneous |
| |
Compliant Standards |
RoHS, 80 PLUS Gold |
| |
Features |
Administrator password, boot without keyboard or mouse, cover key lock, serial port I/O control, USB port control, boot sequence control, boot without diskette or keyboard |
| Networking |
| |
Type |
Integrated |
| |
Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| |
Remote Management Protocol |
IPMI 2.0 |
| |
Ethernet Ports |
2 x Gigabit Ethernet |
| |
Ethernet Controller |
Intel 82574L, Intel 82579LM |
| |
Remote Management Controller |
Integrated Baseboard Management Controller (iBMC) |
| RAM |
| |
Configuration Features |
1 x 4 GB |
| |
Installed Size |
4 GB / 32 GB (max) |
| |
Form Factor |
DIMM 240-pin |
| |
Memory Speed |
1333 MHz |
| |
Technology |
DDR3 SDRAM - ECC |
| |
Memory Specification Compliance |
PC3-10600 |
| |
Features |
Unbuffered, dual channel memory architecture |
Manufacturer Warranty (24 months implied warranty by computeruniverse ) |
| |
Service & Support |
3 years warranty |
| |
Service & Support Details |
Limited warranty - 3 years |
| Expansion / Connectivity |
| |
Interfaces |
6 x USB 2.0 (2 front, 4 rear) 1 x serial 2 x LAN (Gigabit Ethernet) 1 x VGA |
| |
Slots |
1 (total) / 0 (free) x CPU 4 (total) / 3 (free) x DIMM 240-pin 1 (total) / 1 (free) x PCI - half-length, full-height 1 (total) / 1 (free) x PCIe 2.0 x8 - half-length, full-height (x4 mode) 1 (total) / 1 (free) x PCIe 2.0 x8 - half-length, full-height 1 (total) / 1 (free) x PCIe 2.0 x16 - half-length, full-height (x8 mode) |
| |
Bays |
2 (total) / 1 (free) x external 5.25" x 1/2H 4 (total) / 2 (free) x hot-swap 3.5" x 1/3H |
| General |
| |
Front Accessible Bays Qty |
2 |
| |
Type |
Server |
| |
Localisation |
German / Germany |
| |
Built-in Devices |
Led panel |
| |
Hot-Swap Bays Qty |
4 |
| |
Server Scalability |
1-way |
| |
Product Form Factor |
Tower - 5U |
