Product Description |

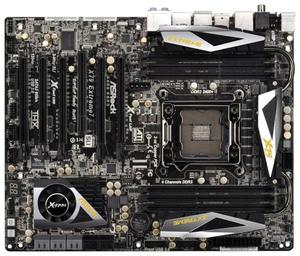

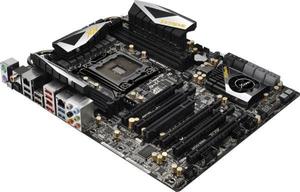

ASRock X79 Extreme7 - motherboard - ATX no CPU - LGA2011 Socket - X79 |
| |
EAN |
4711140878850
|
| |
Processor |
No CPU |
| |
Product Type |
Motherboard - ATX |
| |
Chipset Type |
Intel X79 Express |
| |
Compatible Processors |
Core i7 |
| |
Audio |
HD Audio (8-channel) |
| |
Processor Socket |
1 x LGA2011 Socket |
| |
RAM Supported |
6 DIMM slots - DDR3 , non-ECC, ECC , unbuffered |
| |
Storage Ports |
7 x SATA-600 (RAID), 4 x SATA-300 (RAID), 1 x eSATA-600 |
| |
LAN |
Gigabit Ethernet |
| |
USB / FireWire Ports |
2 x USB 3.0 + 1 x FireWire + 6 x USB 2.0 + (4 x USB 3.0 + 1 x FireWire + 6 x USB 2.0 via headers) |
| |
Max RAM Size |
48 GB |
|
| Supported RAM |
| |
Registered or Buffered |
Unbuffered |
| |
Max Size |
48 GB |
| |
Supported RAM Integrity Check |
Non-ECC, ECC |
| |
Features |
Quad channel memory architecture |
| |
Bus Clock |
1600 MHz, 1333 MHz, 1066 MHz, 800 MHz |
| |
Technology |
DDR3 |
| |
Speed |
PC3-12800, PC3-10600, PC3-8500, PC3-6400 |
| LAN |
| |
Network Interfaces |
Gigabit Ethernet |
| |
Network Controller |
Broadcom BCM57781 |
| Features |
| |
BIOS Type |
AMI |
| |
Sleep / Wake Up |
Wake on LAN (WOL) |
| |
Manual Settings |
CPU frequency, processor core voltage, memory voltage, chipset voltage |
| |
BIOS Features |
JumperFree, SMBIOS 2.3.1. support, Hyper-Threading Technology, ACPI 1.1 support, Untied Overclocking Technology, UEFI BIOS |
| |
Hardware Monitoring |
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, power supply fan tachometer, south bridge fan tachometer |
| |
Hardware Features |
Diagnostic LEDs, ASRock Hybrid Booster, ASRock U-COP, ASRock Instant Boot, NVIDIA SLI Technology Support, 12+2 Phase Power Design, ASRock Instant Flash, ASRock CPU Frequency Stepless Control, ASRock Boot Failure Guard (B.F.G.), NVIDIA 3-way SLI Technology Support, Intel Extreme Memory Profile (XMP) support, NVIDIA Quad SLI Technology Support, ASRock APP Charger, Intel Turbo Boost Technology 2.0, ASRock Good Night LED, ASRock SmartView, ASRock XFast USB, ASRock XFast LAN, ASRock Dr. Debug, ASRock XFast Charger, ASRock XFast RAM, ASRock X-FAN, ASRock Smart Switch, Dual LAN Teaming, UEFI System Browser, ASRock Crashless BIOS, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, AMD 3-way CrossFireX technology support |
| Audio |
| |
Compliant Standards |
THX TruStudio PC |
| |
Type |
HD Audio (8-channel) |
| |
Audio Codec |
Realtek ALC898 |
| Miscellaneous |
| |
Depth |
24.4 cm |
| |
Width |
30.5 cm |
| |

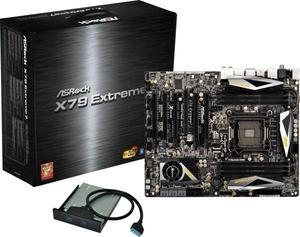

Included Accessories |
Rear USB 3.0 bracket, front USB 3.0 panel, ASRock SLI_Bridge_2S Card, ASRock 3-Way SLI-2S1S Bridge Card |
| |
Software Included |
Drivers & Utilities, ASRock Extreme Tuning Utility, Cyberlink MediaEspresso 6.5 (30-day trial), ASRock MAGIX Multimedia Suite |
| |
Compliant Standards |
Plug and Play, WHQL, FCC, EuP Ready, ErP Ready |
| Expansion / Connectivity |
| |
Power Connectors |
24-pin main power connector, 8-pin ATX12V connector |
| |
RAID Features |
Intel Rapid Storage Technology |
| |
Expansion Slot(s) |
1 x CPU
6 x DIMM 240-pin
5 x PCIe 3.0 x16
1 x PCI |
| |
Storage Interfaces |
SATA-600 - connector(s): 2 x 7pin Serial ATA - 2 Device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5
Marvell 88SE9182 : SATA-600 - connector(s): 5 x 7pin SATA - 5 Device(s) - RAID 0 / RAID 1
SATA-600 - connector(s): 1 x 7pin external SATA - 1 Device(s) |
| |
Interfaces |
1 x PS/2 mouse
1 x PS/2 keyboard
1 x SPDIF out
1 x TOSLINK
6 x USB 2.0
2 x USB 3.0
2 x LAN (Gigabit Ethernet)
1 x FireWire - 6 pin FireWire
1 x microphone - mini-jack
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x audio line-out (side surround) - mini-jack
1 x audio line-out (rear) - mini-jack
1 x audio line-out (center/subwoofer) - mini-jack |
| General |
| |
Max Processors Qty |
1 |
| |
Processor |
No CPU |
| |
Compatible Processors |
Core i7 |
| |
Product Type |
Motherboard - ATX |
| |
Chipset Type |
Intel X79 Express |
| |
Processor Socket |
LGA2011 Socket |
