Product Description |

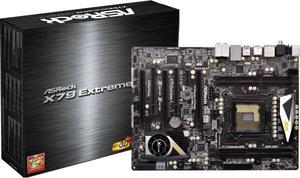

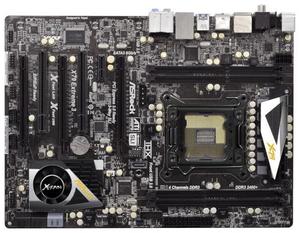

ASRock X79 Extreme3 - motherboard - ATX - LGA2011 Socket - X79 |
| |
EAN |
4711140878898
|
| |
Product Type |
Motherboard - ATX |
| |
Chipset Type |
Intel X79 Express |
| |
Compatible Processors |
Core i7 |
| |
Audio |
HD Audio (8-channel) |
| |
Processor Socket |
1 x LGA2011 Socket |
| |
RAM Supported |
4 DIMM slots - DDR3 , non-ECC, ECC , unbuffered |
| |
Storage Ports |
2 x SATA-600 (RAID), 4 x SATA-300 (RAID), 1 x eSATA-600 |
| |
LAN |
Gigabit Ethernet |
| |
USB / FireWire Ports |
2 x USB 3.0 + 6 x USB 2.0 + (2 x USB 3.0 + 6 x USB 2.0 via headers) |
| |
Max RAM Size |
32 GB |
|
| Supported RAM |
| |
Registered or Buffered |
Unbuffered |
| |
Max Size |
32 GB |
| |
Supported RAM Integrity Check |
Non-ECC, ECC |
| |
Bus Clock |
1600 MHz, 1333 MHz, 1066 MHz, 800 MHz |
| |
Features |
Intel Extreme Memory Profiles (XMP), quad channel memory architecture |
| |
Technology |
DDR3 |
| |
Speed |
PC3-12800, PC3-10600, PC3-8500, PC3-6400 |
| LAN |
| |
Network Interfaces |
Gigabit Ethernet |
| |
Network Controller |
Broadcom BCM57781 |
| Features |
| |
BIOS Type |
AMI |
| |
Sleep / Wake Up |
Wake on LAN (WOL) |
| |
Manual Settings |
CPU frequency, processor core voltage, memory voltage, memory bus frequency |
| |
BIOS Features |
SMBIOS 2.3.1. support, Hyper-Threading Technology, ACPI 1.1 support, Untied Overclocking Technology |
| |
Hardware Monitoring |
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, power supply fan tachometer, north bridge fan tachometer |
| |
Hardware Features |
ASRock Hybrid Booster, ASRock U-COP, ASRock Instant Boot, NVIDIA SLI Technology Support, ASRock Instant Flash, ASRock Boot Failure Guard (B.F.G.), NVIDIA 3-way SLI Technology Support, ASRock APP Charger, 6 Phase Power Design, Intel Turbo Boost Technology 2.0, ASRock Good Night LED, ASRock SmartView, ASRock XFast USB, ASRock XFast LAN, ASRock XFast Charger, ASRock XFast RAM, ASRock X-FAN, AMD CrossFireX technology support, AMD 3-way CrossFireX technology support |
| Audio |
| |
Compliant Standards |
THX TruStudio PC, High Definition Audio |
| |
Type |
HD Audio (8-channel) |
| |
Audio Codec |
Realtek ALC898 |
| Miscellaneous |
| |
Width |
30.5 cm |
| |
Depth |
22.4 cm |
| |
Included Accessories |
I/O back plate |
| |
Cables Included |
1 x 3-way SLI bridge 1 x SLI bridge |
| |
Software Included |
Drivers & Utilities, Cyberlink MediaEspresso 6.5 (30-day trial), ASRock MAGIX Multimedia Suite |
| |
Compliant Standards |
WHQL, FCC, EuP Ready, ErP Ready |
| Expansion / Connectivity |
| |
Power Connectors |
24-pin main power connector, 8-pin ATX12V connector |
| |
RAID Features |
Intel Rapid Storage Technology |
| |
Expansion Slot(s) |
1 x CPU 4 x DIMM 240-pin 2 x PCIe 3.0 x16 1 x PCIe 3.0 x16 1 x PCIe 2.0 x1 2 x PCI |
| |
Storage Interfaces |
SATA-600 - connector(s): 2 x 7pin Serial ATA - 2 Device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5 ASMedia ASM1061 : SATA-600 - connector(s): 1 x 7pin external SATA - 1 Device(s) SATA-300 - connector(s): 4 x 7pin Serial ATA - 4 Device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| |
Interfaces |
1 x PS/2 mouse 1 x PS/2 keyboard 6 x USB 2.0 1 x LAN (Gigabit Ethernet) 1 x SPDIF out 1 x TOSLINK 1 x audio line-out (side surround) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-out - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-in - mini-jack 1 x microphone - mini-jack |
| General |
| |
Max Processors Qty |
1 |
| |
Compatible Processors |
Core i7 |
| |
Product Type |
Motherboard - ATX |
| |
Chipset Type |
Intel X79 Express |
| |
Processor Socket |
LGA2011 Socket |
