Product Description |

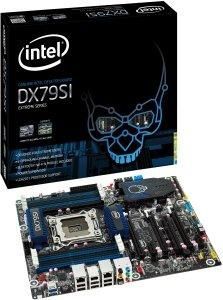

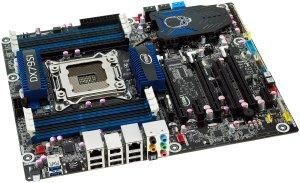

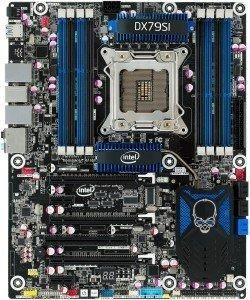

Intel Desktop Board DX79SI - Extreme Series - motherboard - ATX - LGA2011 Socket - X79 |
| |
EAN |
0675901110600
|
| |
Manufacturer Warranty |
3 years warranty (24 months implied warranty by computeruniverse ) |
| |
Product Type |
Motherboard - ATX |
| |
Chipset Type |
Intel X79 Express |
| |
Compatible Processors |
Xeon, Core i7 |
| |
Audio |
HD Audio (8-channel) |
| |
Processor Socket |
1 x LGA2011 Socket |
| |
Environmental Standards |
ENERGY STAR Qualified |
| |
Microsoft Certification |
Compatible with Windows 7 |
| |
RAM Supported |
8 DIMM slots - DDR3 , non-ECC, ECC |
| |
Storage Ports |
2 x SATA-600 (RAID), 4 x SATA-300 (RAID) |
| |
LAN |
Gigabit Ethernet |
| |
USB / FireWire Ports |
2 x USB 3.0 + 1 x FireWire + 6 x USB 2.0 + (1 x FireWire + 8 x USB 2.0 via headers) |
| |
Max RAM Size |
64 GB |
|
| Supported RAM |
| |
Max Size |
64 GB |
| |
Supported RAM Integrity Check |
Non-ECC, ECC |
| |
Features |
Quad channel memory architecture |
| |
Bus Clock |
2400 MHz, 1600 MHz, 1333 MHz, 1066 MHz, 1866 MHz, 2133 MHz |
| |
Technology |
DDR3 |
| LAN |
| |
Network Interfaces |
Gigabit Ethernet |
| |
Network Controller |
Intel 82579L |
| Environmental Standards |
| |
ENERGY STAR Qualified |
Yes |
| Features |
| |
BIOS Type |
Intel |
| |
Hardware Monitoring |
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| |
BIOS Features |
ACPI support, rapid BIOS boot, SMBIOS support, Hyper-Threading Technology |
| |
Sleep / Wake Up |
RTC (real-time clock) wake up, suspend to RAM (STR), wake on LAN (WOL), wake on PCI device, wake on USB port |
| |
Hardware Features |
Chassis intrusion detection, Intel Fast Memory Access Technology, Intel Turbo Boost Technology |
| Audio |
| |
Audio Codec |
Realtek ALC892 |
| |
Type |
HD Audio (8-channel) |
| Miscellaneous |
| |
Software Included |
Drivers & Utilities |
| |
Depth |
24.4 cm |
| |
Package Type |
Retail |
| |
Width |
29.5 cm |
| |
Compatible with Windows 7 |
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| |
Compliant Standards |
Plug and Play, CISPR 24, EN55022, ICES-003, EN55024, CISPR 22, EMC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, FCC CFR47 Part 15 B, CSA C22.2 No. 60950-1, VCCI V-3 |
Manufacturer Warranty (24 months implied warranty by computeruniverse ) |
| |
Service & Support |
3 years warranty |
| |
Service & Support Details |
Limited warranty - 3 years |
| Expansion / Connectivity |
| |
Power Connectors |
24-pin main power connector, 8-pin ATX12V connector |
| |
RAID Features |
Intel Rapid Storage Technology |
| |
Storage Interfaces |
SATA-300 - connector(s): 4 x 7pin Serial ATA - 4 Device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 - connector(s): 2 x 7pin Serial ATA - 2 Device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| |
Expansion Slot(s) |
1 x CPU 8 x DIMM 240-pin 2 x PCIe 3.0 x16 2 x PCIe x1 1 x PCI |
| |
Interfaces |
6 x USB 2.0 2 x LAN (Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out (front surround) - mini-jack 1 x microphone - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x SPDIF out 2 x USB 3.0 1 x FireWire - 6 pin FireWire |
| |
Internal Interfaces |
8 x USB 2.0 1 x FireWire |
| General |
| |
Max Processors Qty |
1 |
| |
Compatible Processors |
Xeon, Core i7 |
| |
Product Type |
Motherboard - ATX |
| |
Chipset Type |
Intel X79 Express |
| |
Processor Socket |
LGA2011 Socket |
