Product Description |

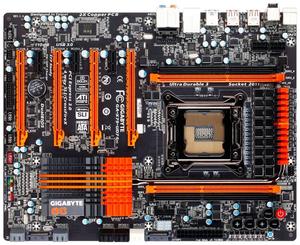

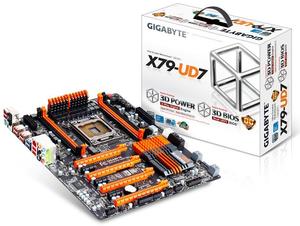

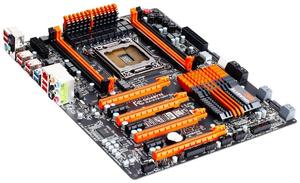

Gigabyte GA-X79-UD7 - 1.0 - motherboard - XL-ATX - LGA2011 Socket - X79 |
| |
EAN |
4719331843359
|
| |
Product Type |
Motherboard - XL-ATX |
| |
Chipset Type |
Intel X79 Express / ITE IT8728 |
| |
Compatible Processors |
Core i7 |
| |
Audio |
HD Audio (8-channel) |
| |
Processor Socket |
1 x LGA2011 Socket |
| |
RAM Supported |
4 DIMM slots - DDR3 , non-ECC |
| |
Storage Ports |
2 x SATA-600 (RAID), 2 x SATA-600 (RAID), 2 x SATA-600 (RAID), 4 x SATA-300 (RAID) |
| |
LAN |
802.11b/g/n, Bluetooth, Gigabit Ethernet |
| |
USB / FireWire Ports |
2 x USB 3.0 + 8 x USB 2.0 + (2 x USB 3.0 + 6 x USB 2.0 via headers) |
| |
Max RAM Size |
32 GB |
|
| Supported RAM |
| |
Max Size |
32 GB |
| |
Supported RAM Integrity Check |
Non-ECC |
| |
Bus Clock |
1600 MHz, 1333 MHz, 1066 MHz, 1866 MHz, 2133 MHz |
| |
Features |
Intel Extreme Memory Profiles (XMP), quad channel memory architecture |
| |
Technology |
DDR3 |
| |
Speed |
PC3-12800, PC3-10600, PC3-8500, PC3-15000, PC3-17000 |
| LAN |
| |
Network Interfaces |
802.11b/g/n, Bluetooth, Gigabit Ethernet |
| Features |
| |
BIOS Type |
AMI |
| |
Hardware Monitoring |
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection |
| |
BIOS Features |
DMI 2.0 support, ACPI 2.0a support, SMBIOS 2.6 support, UEFI BIOS, Touch BIOS, Xpress BIOS Rescue, GIGABYTE 3D BIOS |
| |
Hardware Features |
DualBIOS, Q-Flash, Smart 6, GIGABYTE eXtreme Hard Drive (XHD), 3x USB Power Boost, Intel Extreme Memory Profile (XMP) support, Digital PWM, Ultra Durable 3, On/Off Charge, Intel Turbo Boost Technology 2.0, 16 Phase Power Design, GIGABYTE OC-VRM, GIGABYTE OC-Touch, GIGABYTE OC-PEG, GIGABYTE OC-DualBIOS, GIGABYTE 3D Power, NVIDIA 4-way SLI Technology Support, GIGABYTE 333 Onboard Acceleration, AMD Quad CrossFireX technology support |
| Audio |
| |
Compliant Standards |
High Definition Audio, Dolby Home Theater |
| |
Type |
HD Audio (8-channel) |
| |
Audio Codec |
Realtek ALC898 |
| Miscellaneous |
| |
Width |
34.5 cm |
| |
Depth |
26.3 cm |
| |
Compliant Standards |
Plug and Play, ACPI 2.0a |
| |
Included Accessories |

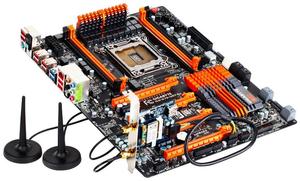

2 aerials, Bluetooth / Wi-Fi module |
| |
Software Included |
Norton Internet Security, @BIOS, Xpress Recovery 2, Q-Share, Cloud OC, EasyTune, GIGABYTE 3D Power |
| Expansion / Connectivity |
| |
Power Connectors |
24-pin main power connector, 8-pin ATX12V connector |
| |
Expansion Slot(s) |
1 x CPU
4 x DIMM 240-pin (1.5 V)
2 x PCIe 3.0 x16
2 x PCIe 3.0 x16
3 x PCIe 2.0 x1 |
| |
Storage Interfaces |
SATA-300 - connector(s): 4 x 7pin Serial ATA - 4 Device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 - connector(s): 2 x 7pin Serial ATA - 2 Device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5
Marvell 88SE9172 : SATA-600 - connector(s): 2 x 7pin Serial ATA - 2 Device(s) - RAID 0 / RAID 1
Marvell 88SE9172 : SATA-600 - connector(s): 2 x 7pin Serial ATA - 2 Device(s) - RAID 0 / RAID 1 |
| |
Interfaces |
1 x PS/2 keyboard / mouse
1 x TOSLINK
8 x USB 2.0
2 x USB 3.0
1 x LAN (Gigabit Ethernet)
1 x audio line-out - mini-jack
1 x audio line-in - mini-jack
1 x microphone - mini-jack
1 x audio line-out (rear) - mini-jack
1 x audio line-out (center/subwoofer) - mini-jack |
| |
Internal Interfaces |
1 x audio
1 x SPDIF out
2 x USB 3.0
6 x USB 2.0 |
| General |
| |
Max Processors Qty |
1 |
| |
Compatible Processors |
Core i7 |
| |
Product Type |
Motherboard - XL-ATX |
| |
Processor Socket |
LGA2011 Socket |
| |
Chipset Type |
Intel X79 Express / ITE IT8728 |
