 > >MSI 760GM-P23 (FX) Sockel AM3+ M-ATX

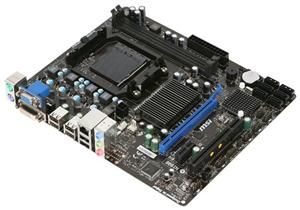

MSI 760GM-P23 (FX) Sockel AM3+ M-ATX

ID: 90435671, SKU: 7641-030R




  • Socket AM3+, M-ATX, AMD 760G, 2x DDR3 up to 16 GB
  • 1x PCIe (x16), 1x PCIe (x1), 1x PCI
  • 6x SATA2 RAID
  • 10x USB2.0, GB-LAN
  • Sound Onboard, CrossfireX

€ 33,90
incl. VAT

shipping from: € 4,99 (Germany)
Add to shopping cart
in stock
(only 2 pc)
ready for shipping


Description for MSI 760GM-P23 (FX) Sockel AM3+ M-ATX

  Description  |  Specifications  |  Reviews (2)  |  Q&A  |  Accessories (427)  |   ↑
For providing a higher upgradability, MSI's AM3 mainboards also support the AM3+ multi-core processors. For the innovative 32 nm process, AMD AM3+ multi-core processors deliver not only higher power efficiency but electrical specifications. Besides, AMD AM3+ multi-core processors support Turbo Core 2.0 which can promote the range of overclocking, and then help the customer get higher performance.

  • Auto OC Genie
    In the past, users needed to adjust settings for CPU and Memory in BIOS menu to overclock. The relation between these ratios and clocks speeds are extremely complicated, taking up to 30 minutes to find the right settings for an optimized PC. Auto OC Genie simplifies it all into one button press. Your C/P ratio rises up 500% immediately for the ultimate value.
  • M-Flash
    Compared to common mainboard which need extra BIOS chips, MSI's M-Flash has a double advantage which doesn't need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover it can also be seen as a portable BIOS chip which is actually able to boot up your PC.
  • APS (Active Phase Switching)
    Active Phase Switching, APS, technology is an intelligent design that helps to save energy on MSI's mainboards. The underlying idea is to switch off the power supply as soon as no electricity is needed, and when the system needs more resources again, APS will automatically adjust electricity supply accordingly. APS will automatically detect your processor's loading at any given time and save energy accordingly. This is only possible by means of a very advanced power controlling technology. Other than software-based solutions, APS technology stands out from MSI's own research. The specially developed IC chip can operate automatically depending on the demands of the power supply, which is to reduce the total power usage.
  • Lossless 24-bit/192 kHz HD audio
    Onboard PC audio gets better! MSI is the first to implement the most high-end HD Audio codecs available. Only MSI offers the Loss-less 24-bit/192 kHz HD audio function with an incredible 109 SNR dB value to provide the most clear and vivid HD audio quality and support 7.1 channels surround sound playback with a 2-channel independent stereo output (multiple streaming) through the front panel 3.5-inch phone jack.

Specifications for MSI 760GM-P23 (FX) Sockel AM3+ M-ATX

  Description  |  Specifications  |  Reviews (2)  |  Q&A  |  Accessories (427)  |   ↑

Processor  Socket AM3+
integrated CPU No
Form factor  M-ATX
Chipset Type  AMD 760G
RAM Sockets 2
RAM technology DDR3
max. RAM 16 GB
AGP  No
PCIe x16 Slots 1
PCIe x16 Version 2.0
PCIe x4 Slots No
PCIe x1 Slots 1
PCI Slots  1
SATA3 Connectors No
SATA3 RAID No
SATA2 Connectors 6
SATA2 RAID yes
PATA Connectors No
PATA Controller  No
USB 3.0 Connectors No
USB 2.0 Connectors  10
eSATA No
Firewire  No
Ethernet  GB-LAN
WiFi No
Further options
Sound Onboard  Yes
SLI support  No
Crossfire supported  yes
EAN 4719072232252
