Shuttle XPC-SH61R4 Sockel 1155Shuttle XPC-SH61R4 Sockel 1155
ID: 90435323, SKU: XPC-SH61R4
- 2x DDR3
- 2x 3.5" (internal), 1x 5.25" (external)
- 1x PCIe (x16), 1x PCIe (x1), 2x DVI
- 2x USB 2.0, 8x USB 2.0, 1x GB-LAN
- MiniPC, incl. PSU (250 Watt )
€ 179,90Product ready for shipping
ready for shipping in 1-2 days
It's a lifestyle based upon quality and sophistication. The Shuttle SH61R4 carries the essence with one of the Shuttle's signature product, along with cutting-edge black aluminum design. It's lighter and more spacious than its predecessor and offers generous space for full-length graphics card and further upgrade. Additional features is provided by the Mini PCI-e Interface which can be used for various applications such as SSD, WLAN module. The R4 front panel allows customized panel with a removable acrylic plate. Shuttle SH61R4 provides you an entry-level system for both home and office, which delivers infinite innovative capabilities and outstanding performance.
- Dual View technology with DVI-I and DVI-D with D-Sub
Dual View technology offers multiple display support on up to two separate monitors. This improves the capabilities and productivity of the user by allowing them to spread multiple windows over two monitors and viewing them simultaneously. - Quick boot solution
The Shuttle XPC Barebone SH61R4 comes with a Mini PCI-e slot which provides an easy way for users to add an internal device such as SSD storage module and wireless card in addition to USB and PCI-e interfaces. Users can secure fast boot-ups and application load times and thus enjoy a faster and smarter performance. - Superior speed of USB 3.0

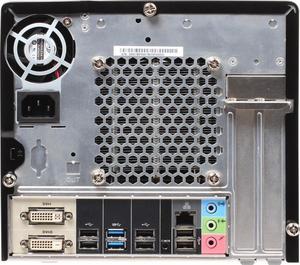

The SH61R4 comes with two USB 3.0 ports situated on the back I/O. With greater demands for transferring larger files at faster speeds, USB 3.0 promises to be a welcome improvement from 2.0 technology. For external enclosures using USB 3.0, it would reduce backup times considerably, improving productivity and efficiency. - Customizable front panel
The SH61R4 includes a customizable front, with endless design and décor possibilities for home and business users. You can decide the design of the panel to your own wishes. The SH61R4 comes with a removable acrylic cover to make this possible. Any design that you want can be placed behind it. Whether a company logo, administrative data or your favorite photo - let your creativity begins, the options are virtually unlimited.
| |
Product Description |
Shuttle XPC SH61R4 - no CPU - Monitor : none. |
| |
EAN |
0811686003557
|
| |
Form Factor |
Mini PC |
| |
Dimensions (WxDxH) |
21.5 cm x 32.5 cm x 19 cm |
| |
Weight |
3.2 kg |
| |
Processor |
No CPU |
| |
Hard Drive |
No HDD |
| |
Networking |
Gigabit LAN |
| |
Power |
AC 120/230 V |
| |
RAM |
0 MB (installed) / 16 GB (max) - DDR3 SDRAM |
| |
Storage Controller |
SATA (SATA-300) |
| |
Graphics Controller |
No graphics |
| |
Audio Output |
Integrated - 5.1 channel surround |
| |
Type |
PC barebone |
| |
Monitor |
None. |
| |
OS Provided |
No operating system |
| |
Processor Socket |
LGA1155 Socket |
| |
Environmental Standards |
ENERGY STAR Qualified |
|
| Processor / Chipset |
| |
Max CPU Qty |
1 |
| |
CPU |
No CPU |
| |
CPU Socket |
LGA1155 Socket |
| |
Chipset Type |
Intel H61 Express |
| Environmental Standards |
| |
ENERGY STAR Qualified |
Yes |
| Dimensions & Weight |
| |
Height |
19 cm |
| |
Depth |
32.5 cm |
| |
Width |
21.5 cm |
| |
Weight |
3.2 kg |
| Hard Drive |
| |
Type |
No HDD |
| Audio Output |
| |
Type |
Integrated |
| |
Sound Output Mode |
5.1 channel surround |
| |
Compliant Standards |
High Definition Audio |
| Graphics Controller |
| |
Video Interfaces |
DVI |
| |
Graphics Processor |
No graphics |
| Monitor |
| |
Monitor Type |
None. |
| Operating System / Software |
| |
Software |
Drivers & Utilities, Adobe Reader |
| |
OS Provided |
No operating system |
| Storage Controller |
| |
Channel Qty |
4 |
| |
Controller Interface Type |
SATA-300 |
| |
Type |
1 x SATA - integrated |
| Power |
| |
Device Type |
Power supply |
| |
Power Provided |
250 Watt |
| |
Nominal Voltage |
AC 120/230 V |
| Miscellaneous |
| |
Cables Included |
Serial ATA cable (2 pcs.) |
| |
Features |
Active Power Factor Correction (PFC), Integrated Cooling Engine (I.C.E.) |
| |
Compliant Standards |
Plug and Play, C-Tick, BSMI, CB, FCC, RoHS, ETL, Energy-using Products (EuP) Lot 6, ACPI 3.0 |
| Networking |
| |
Type |
Integrated |
| |
Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| |
Features |
Wake on LAN (WoL) |
| |
Compliant Standards |
IEEE 802.3u |
| |
Ethernet Controller |
Realtek RTL8111E |
| RAM |
| |
Installed Size |
0 MB / 16 GB (max) |
| |
Form Factor |
DIMM 240-pin |
| |
Technology |
DDR3 SDRAM |
| |
Features |
Dual channel memory architecture |
| Expansion / Connectivity |
| |
Slots |
1 (total) / 1 (free) x CPU 2 (total) / 2 (free) x DIMM 240-pin 1 (total) / 1 (free) x PCIe 2.0 x16 1 (total) / 1 (free) x PCIe 2.0 x1 1 (total) / 1 (free) x PCIe Mini Card |
| |
Interfaces |
8 x USB 2.0 (2 front, 6 rear) 2 x USB 3.0 1 x audio line-out (rear)/line-in 1 x audio line-out (front surround) 1 x audio line-out (centre/subwoofer)/microphone 1 x microphone (1 in front) 1 x audio line-out/headphones (1 in front) 1 x DVI-I 1 x DVI-D 1 x LAN (Gigabit Ethernet) |
| |
Bays |
1 (total) / 1 (free) x external 5.25" 2 (total) / 2 (free) x internal 3.5" |
| General |
| |
Colour |
Black |
| |
Type |
PC barebone |
| |
Product Form Factor |
Mini PC |
