Product Description |

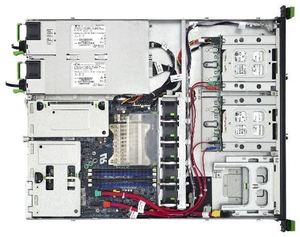

Fujitsu PRIMERGY RX100 S7 - Xeon E3-1220 3.1 GHz - Monitor : none. |
| |
EAN |
4051554266592
|
| |
Form Factor |
Rack-mountable - 1U |
| |
Manufacturer Warranty |
1 year warranty - on-site (24 months implied warranty by computeruniverse ) |
| |
Dimensions (WxDxH) |
48.3 cm x 55.7 cm x 4.3 cm |
| |
Weight |
14 kg |
| |
Processor |
1 x Intel Xeon E3-1220 / 3.1 GHz (3.4 GHz) (Quad-Core) |
| |
Hard Drive |
No HDD |
| |
Networking |
Gigabit LAN |
| |
Power |
AC 120/230 V (50/60 Hz) |
| |
RAM |
4 GB (installed) / 32 GB (max) - DDR3 SDRAM - ECC - 1333 MHz - PC3-10600 |
| |
Storage Controller |
SATA (SATA-600) |
| |
Type |
Server |
| |
Cache Memory |
8 MB L3 Cache |
| |
Optical Storage |
DVD±RW (±R DL) / DVD-RAM |
| |
Monitor |
None. |
| |
Cache Per Processor |
8 MB |
| |
Processor Socket |
LGA1155 Socket |
| |
Server Storage Bays |
Hot-swap 3.5" |
| |
Server Scalability |
1-way |
|
| Processor / Chipset |
| |
CPU Qty |
1 |
| |
Max CPU Qty |
1 |
| |
CPU Upgradability |
Upgradable |
| |
64-bit Computing |
Yes |
| |
Max Turbo Speed |
3.4 GHz |
| |
Number of Cores |
Quad-Core |
| |
CPU Socket |
LGA1155 Socket |
| |
Chipset Type |
Intel C202 |
| |
CPU |
Intel Xeon E3-1220 / 3.1 GHz |
| Dimensions & Weight |
| |
Height |
4.3 cm |
| |
Width |
48.3 cm |
| |
Weight |
14 kg |
| |
Depth |
55.7 cm |
| Hard Drive |
| |
Type |
No HDD |
| Graphics Controller |
| |
Type |
Integrated |
| |
Video Interfaces |
VGA |
| Monitor |
| |
Monitor Type |
None. |
| Operating System / Software |
| |
Software |
ServerView |
| Optical Storage |
| |
Read Speed |
24x (CD) / 8x (DVD) |
| |
Write Speed |
24x (CD) |
| |
CD / DVD Rewrite Speed |
16x (CD) / 6x (DVD-RW) / 8x (DVD+RW) / 5x (DVD-RAM) |
| |
Type |
DVD±RW (±R DL) / DVD-RAM - SATA |
| Cache Memory |
| |
Cache Per Processor |
8 MB |
| |
Installed Size |
L3 Cache - 8 MB |
| Storage Controller |
| |
Channel Qty |
5 |
| |
RAID Level |
RAID 0, RAID 1, RAID 10 |
| |
Type |
1 x SATA - integrated |
| |
Controller Interface Type |
SATA-600 |
| Environmental Parameters |
| |
Max Operating Temperature |
35 °C |
| |
Min Operating Temperature |
15 °C |
| |
Sound Emission |
24 dBA |
| |
Humidity Range Operating |
10 - 85% (non-condensing) |
| Power |
| |
Device Type |
Power supply |
| |
Power Provided |
300 Watt |
| |
Nominal Voltage |
AC 120/230 V (50/60 Hz) |
| Miscellaneous |
| |
Included Accessories |
Rack mounting kit (full extraction), cable arm |
| |
Compliant Standards |
FCC Class A certified, CSA, VCCI, C-Tick, BSMI, GOST, GS, CB, CCC, RoHS, WEEE, cULus |
| Networking |
| |
Type |
Integrated |
| |
Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| |
Remote Management Protocol |
IPMI 2.0 |
| |
Ethernet Ports |
2 x Gigabit Ethernet |
| |
Features |
Wake on LAN (WoL), PXE support |
| |
Ethernet Controller |
Intel 82574L, Intel 82579LM |
| |
Remote Management Controller |
Integrated Remote Management Controller (iRMC S3) |
| RAM |
| |
Configuration Features |
1 x 4 GB |
| |
Installed Size |
4 GB / 32 GB (max) |
| |
Memory Speed |
1333 MHz |
| |
Technology |
DDR3 SDRAM - ECC |
| |
Memory Specification Compliance |
PC3-10600 |
| |
Features |
Unbuffered, dual channel memory architecture, dual rank |
Manufacturer Warranty (24 months implied warranty by computeruniverse ) |
| |
Service & Support |
1 year warranty |
| |
Service & Support Details |
Limited warranty - 1 year - on-site |
| Expansion / Connectivity |
| |
Slots |
1 (total) / 0 (free) x CPU 4 (total) / 3 (free) x memory 1 (total) / 1 (free) x PCIe 2.0 x4 - low-profile (x1 mode) 1 (total) / 1 (free) x PCIe 2.0 x8 - low-profile (x4 mode) 1 (total) / 1 (free) x PCIe 2.0 x16 - low-profile |
| |
Interfaces |
6 x USB 2.0 (2 front, 4 rear) 1 x VGA 1 x serial 2 x LAN (Gigabit Ethernet) 1 x management - Ethernet 10Base-T/100Base-TX/1000Base-T |
| |
Bays |
1 (total) / 0 (free) x external 5.25" x 1/6H (Slim Line) 2 (total) / 2 (free) x hot-swap 3.5" x 1/3H |
| General |
| |
Front Accessible Bays Qty |
1 |
| |
Hot-Swap Bays Qty |
2 |
| |
Type |
Server |
| |
Built-in Devices |
Led panel |
| |
Server Scalability |
1-way |
| |
Product Form Factor |
Rack-mountable - 1U |
