Product Description |

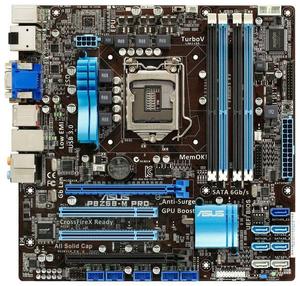

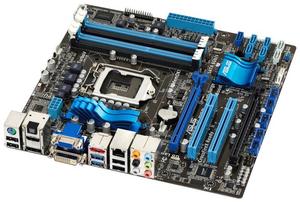

ASUS P8Z68-M PRO - motherboard - micro ATX - LGA1155 Socket - Z68 |
| |
EAN |
4719543100011
|
| |
Manufacturer Warranty |
3 years warranty (24 months implied warranty by computeruniverse  ) |
| |
Product Type |
Motherboard - micro ATX |
| |
Chipset Type |
Intel Z68 Express |
| |
Compatible Processors |
Core i5, Core i3, Core i7 |
| |
Audio |
HD Audio (8-channel) |
| |
Processor Socket |
1 x LGA1155 Socket |
| |
Microsoft Certification |
Compatible with Windows 7 |
| |
RAM Supported |
4 DIMM slots - DDR3 , non-ECC , unbuffered |
| |
Storage Ports |
2 x SATA-600 (RAID), 1 x SATA-600, 4 x SATA-300 (RAID), 1 x eSATA-600 |
| |
LAN |
Gigabit Ethernet |
| |
USB / FireWire Ports |
2 x USB 3.0 + 4 x USB 2.0 + (10 x USB 2.0 via headers) |
| |
Max RAM Size |
32 GB |
|
| Supported RAM |
| |
Registered or Buffered |
Unbuffered |
| |
Max Size |
32 GB |
| |
Supported RAM Integrity Check |
Non-ECC |
| |
Features |
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| |
Bus Clock |
1600 MHz, 1333 MHz, 1066 MHz |
| |
Technology |
DDR3 |
| |
Speed |
PC3-12800, PC3-10600, PC3-8500 |
| LAN |
| |
Network Interfaces |
Gigabit Ethernet |
| |
Network Controller |
Realtek RTL8111E |
| Features |
| |
BIOS Type |
AMI |
| |
Sleep / Wake Up |
Wake on LAN (WOL), wake on ring (WOR) |
| |
BIOS Features |
DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ACPI 2.0a support, SMBIOS 2.6 support, UEFI BIOS |
| |
Hardware Features |
C.P.R. (CPU Parameter Recall), jack retasking, ASUS Anti-Surge Protection, MemOK!, Trusted Platform Module (TPM), ASUS Q-Design, ESD Guards, Q-DIMM, GPU Boost, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Extreme Memory Profile (XMP) support, ASUS Fan Xpert, ASUS TurboV, Intel Turbo Boost Technology 2.0, Lucid Virtu, Intel Smart Response Technology, Fanless Design Heatsink, ASUS Protect 3.0 Technology, Conductive Polymer Capacitors, AMD Quad CrossFireX technology support |
| Audio |
| |
Compliant Standards |
High Definition Audio |
| |
Audio Codec |
Realtek ALC892 |
| |
Type |
HD Audio (8-channel) |
| Miscellaneous |
| |
Width |
24.5 cm |
| |
Depth |
24.5 cm |
| |
Cables Included |
4 x Serial ATA cable |
| |
Included Accessories |
I/O back plate |
| |
Compatible with Windows 7 |
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| |
Compliant Standards |
Plug and Play, RoHS, ACPI 2.0a, ErP Ready |
| |
Software Included |
Drivers & Utilities, ASUS Live Update, ASUS AI Suite II, ASUS AI Charger+ |
Manufacturer Warranty
(24 months implied warranty by computeruniverse ) |
| |
Service & Support |
3 years warranty |
| |
Service & Support Details |
Limited warranty - 3 years |
| Expansion / Connectivity |
| |
Power Connectors |
24-pin main power connector, 8-pin ATX12V connector |
| |
RAID Features |
Intel Smart Response Technology |
| |
Storage Interfaces |
SATA-600 - connector(s): 2 x 7pin Serial ATA - 2 Device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-300 - connector(s): 4 x 7pin Serial ATA - 4 Device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 - connector(s): 1 x 7pin Serial ATA, 1 x 7pin external SATA - 2 Device(s) |
| |
Expansion Slot(s) |
1 x CPU
4 x DIMM 240-pin
1 x PCIe 2.0 x16
1 x PCIe 2.0 x16
2 x PCI |
| |
Internal Interfaces |
10 x USB 2.0
1 x serial
1 x SPDIF out |
| |
Interfaces |
1 x PS/2 keyboard / mouse
1 x DVI-D
1 x VGA
1 x DisplayPort
1 x HDMI
1 x LAN (Gigabit Ethernet)
2 x USB 3.0
4 x USB 2.0
1 x TOSLINK
1 x audio line-out - mini-jack
1 x audio line-in - mini-jack
1 x microphone - mini-jack
1 x audio line-out (center/subwoofer) - mini-jack
1 x audio line-out (rear) - mini-jack
1 x audio line-out (side surround) - mini-jack |
| General |
| |
Max Processors Qty |
1 |
| |
Compatible Processors |
Core i5, Core i3, Core i7 |
| |
Processor Socket |
LGA1155 Socket |
| |
Product Type |
Motherboard - micro ATX |
| |
Chipset Type |
Intel Z68 Express |
