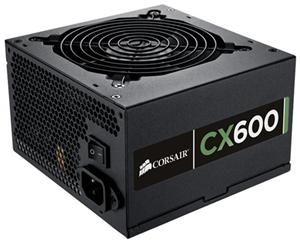

Corsair Builder Series CX600 600 Watt V2 ATX 2.3Corsair Builder Series CX600 600 Watt V2 ATX 2.3
ID: 90419093, SKU: CMPSU-600CXV2EU
- 600 Watt, ATX, active PFC
- 6x SATA, 4x Molex, 2x PCIe 6pin
- active cooling, 1x 120 mm fan
€ 61,90Product is no longer
available
| |
Product Description |
Corsair Builder Series CX600 V2 - power supply - 600 Watt |
| |
EAN |
0843591011556
|
| |
Manufacturer Warranty |
3 years warranty (24 months implied warranty by computeruniverse ) |
| |
Dimensions (WxDxH) |
15 cm x 14 cm x 8.6 cm |
| |
Localisation |
Europe |
| |
Device Type |
Power supply - active Power Factor Correction (PFC) - internal |
| |
Input Voltage |
AC 90-264 V |
| |
Output Voltage |
+3.3, +5, ±12 V |
| |
Output Connector(s) |
1 x power 24 pin ATX 1 x power 8 pin EPS12V 6 x 15 pin Serial ATA power 4 x 4 PIN internal power 1 x 4 PIN mini-power connector |
| |
Specification Compliance |
ATX12V 2.3 |
| |
Cooling System |
120 mm fan |
| |
Power Capacity |
600 Watt |
| |
80 PLUS Certification |
80 PLUS |
|
| Dimensions & Weight |
| |
Height |
8.6 cm |
| |
Depth |
14 cm |
| |
Width |
15 cm |
| Power Device |
| |
Power Capacity |
600 Watt |
| |
Input Voltage |
AC 90-264 V |
| |
Output Voltage |
+3.3, +5, ±12 V |
| |
80 PLUS Certification |
80 PLUS |
| |
Power Output Connectors Details |
1 x power 24 pin ATX 1 x power 8 pin EPS12V 6 x 15 pin Serial ATA power 4 x 4 PIN internal power 1 x 4 PIN mini-power connector |
| Miscellaneous |
| |
Cooling System |
120 mm fan |
| |
Features |
Sleeved cables , over voltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail |
| |
MTBF |
100,000 hours |
| |
Compliant Standards |
FCC Class B certified, UL, TUV, C-Tick, cUL, CB, CCC, Energy-Related Products (ErP) Lot 6 |
Manufacturer Warranty (24 months implied warranty by computeruniverse ) |
| |
Service & Support |
3 years warranty |
| |
Service & Support Details |
Limited warranty - 3 years |
| General |
| |
Localisation |
Europe |
| |
Device Type |
Power supply - active Power Factor Correction (PFC) - internal |
| |
Specification Compliance |
ATX12V 2.3 |
