Product Description |

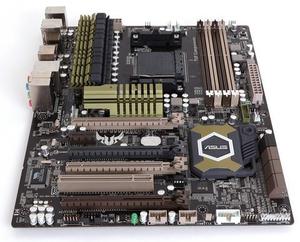

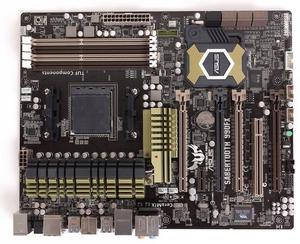

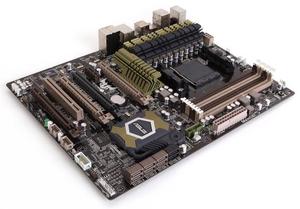

ASUS SABERTOOTH 990FX - motherboard - ATX - Socket AM3+ - AMD 990FX |
| |
EAN |
4719543181140
|
| |
Manufacturer Warranty |
5 years warranty (24 months implied warranty by computeruniverse  ) |
| |
Product Type |
Motherboard - ATX |
| |
Chipset Type |
AMD 990FX / AMD SB950 |
| |
Compatible Processors |
Sempron, Phenom II X3, Athlon II X2, Phenom II X2, Athlon II X4, Athlon II X3, Phenom II X4, Phenom II X6 |
| |
Audio |
HD Audio (8-channel) |
| |
Processor Socket |
1 x Socket AM3+ |
| |
Microsoft Certification |
Compatible with Windows 7 |
| |
RAM Supported |
4 DIMM slots - DDR3 , non-ECC, ECC , unbuffered |
| |
Storage Ports |
6 x SATA-600 (RAID), 2 x SATA-300, 1 x eSATA-300, 1 x powered eSATA-300 |
| |
LAN |
Gigabit Ethernet |
| |
USB / FireWire Ports |
2 x USB 3.0 + 1 x FireWire + 10 x USB 2.0 + (2 x USB 3.0 + 1 x FireWire + 4 x USB 2.0 via headers) |
| |
Data Bus Transfer Rate |
5.2 GT/s |
| |
Max RAM Size |
32 GB |
|
| Supported RAM |
| |
Registered or Buffered |
Unbuffered |
| |
Max Size |
32 GB |
| |
Supported RAM Integrity Check |
Non-ECC, ECC |
| |
Features |
Dual channel memory architecture |
| |
Bus Clock |
1800 MHz, 1600 MHz, 1333 MHz, 1066 MHz |
| |
Technology |
DDR3 |
| |
Speed |
PC3-14400, PC3-12800, PC3-10600, PC3-8500 |
| LAN |
| |
Network Interfaces |
Gigabit Ethernet |
| |
Network Controller |
Realtek RTL8111E |
| Features |
| |
Sleep / Wake Up |
Wake on LAN (WOL), wake on ring (WOR) |
| |
BIOS Features |
DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS MyLogo2, ASUS EZ Flash 2, ASUS O.C. Profile, ACPI 2.0a support, SMBIOS 2.5 support, ASUS EFI BIOS |
| |
Hardware Features |
AMD Cool 'n' Quiet Technology, jack retasking, ASUS Anti-Surge Protection, MemOK!, 8+2 Phase Power Design, ASUS Q-Design, T.Probe, CeraM!X Heatsink Coating Technology, ESD Guards, TUF Engine!, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Q-Connector, ASUS Noise Filter, audio jack detect technology, ASUS Q-Shield, NVIDIA Quad SLI Technology Support, ASUS TurboV, ASUS TPU (TurboV Processing Unit), TUF Thermal Radar, ASUS DIGI+ VRM, AMD Quad CrossFireX technology support |
| Audio |
| |
Compliant Standards |
High Definition Audio |
| |
Audio Codec |
Realtek ALC892 |
| |
Type |
HD Audio (8-channel) |
| Miscellaneous |
| |
Depth |
24.4 cm |
| |
Width |
30.5 cm |
| |
Compatible with Windows 7 |
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| |
Compliant Standards |
Plug and Play, ACPI 2.0a, EuP Ready |
| |
Cables Included |
4 x Serial ATA cable
1 x SLI bridge |
| |
Software Included |
Drivers & Utilities, ASUS Live Update, ASUS AI Suite II, ASUS AI Charger+ |
Manufacturer Warranty
(24 months implied warranty by computeruniverse ) |
| |
Service & Support |
5 years warranty |
| |
Service & Support Details |
Limited warranty - 5 years |
| Expansion / Connectivity |
| |
Power Connectors |
24-pin main power connector, 8-pin ATX12V connector |
| |
Storage Interfaces |
AMD SB950 : SATA-600 - connector(s): 6 x 7pin Serial ATA - 6 Device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5
JMicron JMB362 : SATA-300 - connector(s): 2 x 7pin Serial ATA - 2 Device(s)
JMicron JMB362 : SATA-300 - connector(s): 1 x 7pin eSATA, 1 x 11pin eSATAp - 2 Device(s) |
| |
Expansion Slot(s) |
1 x CPU
4 x DIMM 240-pin
3 x PCIe 2.0 x16
1 x PCIe 2.0 x16
1 x PCIe 2.0 x1
1 x PCI |
| |
Interfaces |
1 x PS/2 keyboard / mouse
1 x FireWire - 6 pin FireWire
1 x LAN (Gigabit Ethernet)
2 x USB 3.0
10 x USB 2.0
1 x TOSLINK
1 x audio line-out - mini-jack
1 x audio line-in - mini-jack
1 x microphone - mini-jack
1 x audio line-out (side surround) - mini-jack
1 x audio line-out (rear) - mini-jack
1 x audio line-out (center/subwoofer) - mini-jack |
| |
Internal Interfaces |
4 x USB 2.0
2 x USB 3.0
1 x serial
1 x FireWire
1 x SPDIF out
1 x audio |
| General |
| |
Max Processors Qty |
1 |
| |
Max Bus Speed |
2600 MHz |
| |
Compatible Processors |
Sempron, Phenom II X3, Athlon II X2, Phenom II X2, Athlon II X4, Athlon II X3, Phenom II X4, Phenom II X6 |
| |
Product Type |
Motherboard - ATX |
| |
Data Bus Transfer Rate |
5.2 GT/s |
| |
Processor Socket |
Socket AM3+ |
| |
Chipset Type |
AMD 990FX / AMD SB950 |
