Product Description |

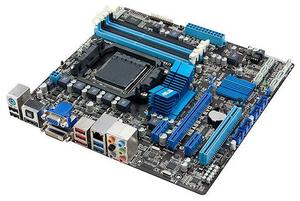

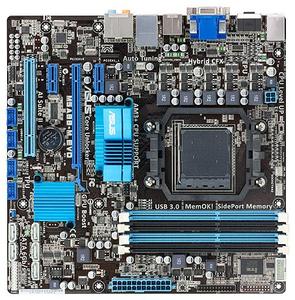

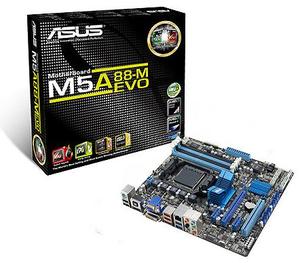

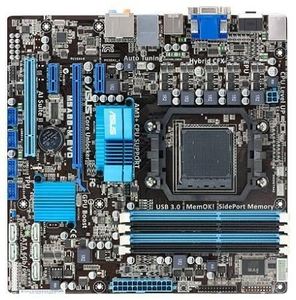

ASUS M5A88-M EVO - motherboard - micro ATX - Socket AM3+ - AMD 880G |
| |
EAN |
4719543180860
|
| |
Manufacturer Warranty |
3 years warranty (24 months implied warranty by computeruniverse  ) |
| |
Product Type |
Motherboard - micro ATX |
| |
Chipset Type |
AMD 880G / AMD SB850 |
| |
Compatible Processors |
Sempron, Phenom II X3, Athlon II X2, Phenom II X2, Athlon II X4, Athlon II X3, Phenom II X4, Phenom II X6, FX (Maximum TDP 140 Watt) |
| |
Audio |
HD Audio (8-channel) |
| |
Processor Socket |
1 x Socket AM3+ |
| |
Microsoft Certification |
Compatible with Windows 7 |
| |
RAM Supported |
4 DIMM slots - DDR3 unbuffered |
| |
Storage Ports |
5 x SATA-600 (RAID), 1 x eSATA-600 |
| |
LAN |
Gigabit Ethernet |
| |
Graphics |
ATI Radeon HD 4250 |
| |
USB / FireWire Ports |
2 x USB 3.0 + 4 x USB 2.0 + (8 x USB 2.0 via headers) |
| |
Data Bus Transfer Rate |
5.2 GT/s |
| |
Max Allocated RAM Size |
1 GB |
| |
Max RAM Size |
16 GB |
|
| Supported RAM |
| |
Registered or Buffered |
Unbuffered |
| |
Max Size |
16 GB |
| |
Speed |
PC3-10600, PC3-8500 |
| |
Features |
Dual channel memory architecture |
| |
Bus Clock |
1333 MHz, 1066 MHz |
| |
Technology |
DDR3 |
| Graphics |
| |
Memory Allocation Technology |
Shared Video Memory (UMA) |
| |
Max Allocated RAM Size |
1 GB |
| |
Graphics Controller |
ATI Radeon HD 4250 |
| LAN |
| |
Network Interfaces |
Gigabit Ethernet |
| |
Network Controller |
Realtek RTL8111E |
| Features |
| |
BIOS Type |
AMI |
| |
Sleep / Wake Up |
Wake on LAN (WOL), wake on ring (WOR) |
| |
BIOS Features |
DMI 2.0 support, WfM 2.0 support, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ASUS O.C. Profile, ACPI 2.0a support, SMBIOS 2.5 support |
| |
Hardware Features |
C.P.R. (CPU Parameter Recall), AMD Cool 'n' Quiet Technology, jack retasking, ASUS Anti-Surge Protection, MemOK!, 4+1 Phase Power Design, ASUS TurboV EVO, GPU Boost, ASUS EZ DIY, CrashFree BIOS 3, ASUS Noise Filter, audio jack detect technology, ASUS CPU Level Up, ASUS EPU (Energy Processing Unit), ASUS Precision Tweaker 2, ASUS Fan Xpert, ASUS TurboV, ASUS Turbo Key II, Core Unlocker, ASUS Turbo Unlocker, ASUS TPU (TurboV Processing Unit), AMD Hybrid CrossFireX technology support |
| Audio |
| |
Compliant Standards |
High Definition Audio |
| |
Audio Codec |
Realtek ALC892 |
| |
Type |
HD Audio (8-channel) |
| Miscellaneous |
| |
Width |
24.4 cm |
| |
Depth |
24.4 cm |
| |
Cables Included |
2 x Serial ATA cable |
| |
Included Accessories |
I/O back plate |
| |
Compatible with Windows 7 |
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| |
Compliant Standards |
Plug and Play, ACPI 2.0a, EuP Ready |
| |
Software Included |
Drivers & Utilities, ASUS Live Update, ASUS PC Probe 2, AMD OverDrive, ASUS EZ Flash 2, ASUS Auto Tuning |
Manufacturer Warranty
(24 months implied warranty by computeruniverse ) |
| |
Service & Support |
3 years warranty |
| |
Service & Support Details |
Limited warranty - 3 years |
| Expansion / Connectivity |
| |
Power Connectors |
4-pin ATX12V connector, 24-pin main power connector |
| |
Expansion Slot(s) |
1 x CPU
4 x DIMM 240-pin
1 x PCIe 2.0 x16
2 x PCIe 2.0 x1
1 x PCI |
| |
Interfaces |
1 x PS/2 keyboard / mouse
1 x DVI-D
1 x VGA
1 x HDMI
1 x LAN (Gigabit Ethernet)
4 x USB 2.0
2 x USB 3.0
1 x audio line-out - mini-jack
1 x audio line-in - mini-jack
1 x microphone - mini-jack
1 x audio line-out (side surround) - mini-jack
1 x audio line-out (rear) - mini-jack
1 x audio line-out (center/subwoofer) - mini-jack
1 x TOSLINK |
| |
Storage Interfaces |
AMD SB850 : SATA-600 - connector(s): 5 x 7pin SATA, 1 x 7pin eSATA - 6 Device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5 / JBOD |
| |
Internal Interfaces |
8 x USB 2.0
1 x serial
1 x audio
1 x SPDIF out
1 x parallel |
| General |
| |
Max Processors Qty |
1 |
| |
Max Bus Speed |
2600 MHz |
| |
Chipset Type |
AMD 880G / AMD SB850 |
| |
Product Type |
Motherboard - micro ATX |
| |
Data Bus Transfer Rate |
5.2 GT/s |
| |
Processor Socket |
Socket AM3+ |
| |
Compatible Processors |
Sempron, Phenom II X3, Athlon II X2, Phenom II X2, Athlon II X4, Athlon II X3, Phenom II X4, Phenom II X6, FX (Maximum TDP 140 Watt) |
