Product Description |

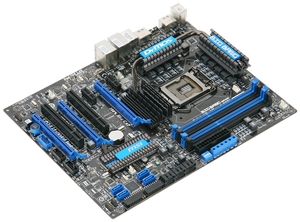

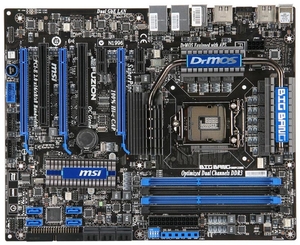

MSI Big Bang Fuzion - motherboard - ATX - LGA1156 Socket - P55 |
| |
EAN |
4719072154783
|
| |
Product Type |
Motherboard - ATX |
| |
Chipset Type |
Intel P55 Express |
| |
Compatible Processors |
Core i5, Core i3, Core i7 |
| |
Audio |
HD Audio (8-channel) |
| |
Processor Socket |
1 x LGA1156 Socket |
| |
USB Ports Configuration |
10 x USB |
| |
FireWire Ports Configuration |
2 x FireWire |
| |
RAM Supported |
4 DIMM slots - DDR3 unbuffered |
| |
Storage Ports |
1 x ATA, 10 x SATA |
| |
LAN |
2 x Gigabit Ethernet |
| |
Max RAM Size |
16 GB |
|
| Supported RAM |
| |
Registered or Buffered |
Unbuffered |
| |
Max Size |
16 GB |
| |
Speed |
PC3-10600, PC3-8500 |
| |
Features |
Dual channel memory architecture |
| |
Bus Clock |
1333 MHz, 1066 MHz |
| |
Technology |
DDR3 |
| LAN |
| |
Network Interfaces |
2 x Gigabit Ethernet |
| |
Network Controller |
2 x Realtek RTL8111DL |
| Features |
| |
Manual Settings |
Processor core voltage, memory voltage |
| |
BIOS Features |
DMI support, ACPI 2.0 support, M-Flash, MSI DrMOS |
| |
Hardware Features |
Chassis intrusion detection, Trusted Platform Module (TPM), ATI CrossFire technology support, ESD Guards, OC Genie, USB Safeguard, Quantum Wave, SuperPipe, Onboard LED, SidePort memory, MSI Active Phase Switching (APS), MSI D-LED 2 |
| Audio |
| |
Audio Codec |
Realtek ALC889 |
| |
Compliant Standards |
EAX ADVANCED HD, DirectX, EAX 5.0, THX TruStudio PC, High Definition Audio |
| |
Type |
HD Audio (8-channel) |
| Miscellaneous |
| |
Depth |
24.4 cm |
| |
Width |
30.5 cm |
| |
Compliant Standards |
Plug and Play, ACPI 2.0 |
| |
Software Included |
Drivers & Utilities, MSI Live Update 4 |
| |

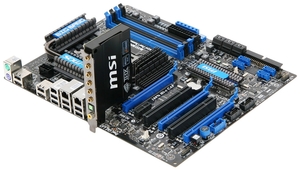

Included Accessories |
Audio card |
| Expansion / Connectivity |
| |
Additional Connectors (Optional) |
2 x Hi-Speed USB, 1 x IEEE 1394 (FireWire) |
| |
Power Connectors |
24-pin main power connector, 8-pin ATX12V connector |
| |
Expansion Slot(s) |
1 x CPU 4 x DIMM 240-pin (1.5 V) 3 x PCIe 2.0 x16 2 x PCIe 2.0 x1 2 x PCI (3.3 V/ 5 V) |
| |
Storage Interfaces |
JMicron JMB363 : ATA-133 - connector(s): 1 x 40pin IDC - 1 Device(s) JMicron JMB363 : SATA-300 - connector(s): 6 x 7pin Serial ATA - 6 Device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5 / JBOD JMicron JMB322 : SATA-300 - connector(s): 4 x 7pin Serial ATA - 4 Device(s) - RAID 0 / RAID 1 / JBOD JMicron JMB322 : SATA-300 - connector(s): 2 x 7pin external SATA - 2 Device(s) - RAID 0 / RAID 1 / JBOD |
| |
Interfaces |
1 x PS/2 keyboard 1 x PS/2 mouse 2 x eSATA-300 / USB 2.0 1 x FireWire - 6 pin FireWire 8 x USB 2.0 2 x LAN (Gigabit Ethernet) 1 x audio line-out - mini-jack 1 x audio line-in - mini-jack 1 x microphone - mini-jack 1 x audio line-out (side surround) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x TOSLINK 1 x SPDIF out |
| General |
| |
Max Processors Qty |
1 |
| |
Processor Socket |
LGA1156 Socket |
| |
Chipset Type |
Intel P55 Express |
| |
Compatible Processors |
Core i5, Core i3, Core i7 |
| |
Product Type |
Motherboard - ATX |
