Product Description |

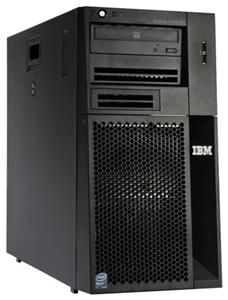

IBM System x3200 M3 7328 - Xeon X3440 2.53 GHz - Monitor : none. |
| |
EAN |
0883436081559
|
| |
Form Factor |
Mini tower - 5U |
| |
Manufacturer Warranty |
3 years warranty - on-site (24 months implied warranty by computeruniverse ) |
| |
Dimensions (WxDxH) |
21.6 cm x 54 cm x 43.8 cm |
| |
Weight |
16.3 kg |
| |
Processor |
1 x Intel Xeon X3440 / 2.53 GHz (Quad-Core) |
| |
Hard Drive |
No HDD |
| |
Networking |
Gigabit LAN |
| |
Power |
AC 120/230 V (50/60 Hz) |
| |
RAM |
2 GB (installed) / 24 GB (max) - DDR3 SDRAM - ECC - 1333 MHz - PC3-10600 |
| |
Storage Controller |
SAS ; SATA |
| |
Graphics Controller |
Matrox MGA G200e |
| |
Type |
Server |
| |
Localisation |
EMEA |
| |
Cache Memory |
8 MB L3 Cache |
| |
Optical Storage |
DVD-ROM |
| |
Monitor |
None. |
| |
OS Provided |
No operating system |
| |
Cache Per Processor |
8 MB |
| |
Server Storage Bays |
Hot-swap 3.5" |
| |
Server Scalability |
1-way |
| |
Video Memory |
128 MB |
| |
Windows Server Certified |
This server is tested, tuned and certified for Windows Server 2008 R2 with OEM-branded hardware. Purchase a Reseller Option Kit to have your server solution pre-loaded. |
|
| Processor / Chipset |
| |
CPU Qty |
1 |
| |
Max CPU Qty |
1 |
| |
Front Side Bus |
1333 MHz |
| |
Number of Cores |
Quad-Core |
| |
CPU |
Intel Xeon X3440 / 2.53 GHz |
| Dimensions & Weight |
| |
Height |
43.8 cm |
| |
Width |
21.6 cm |
| |
Depth |
54 cm |
| |
Weight |
16.3 kg |
| Hard Drive |
| |
Type |
No HDD |
| Storage Controller (2nd) |
| |
Type |
1 x Serial ATA - integrated |
| Graphics Controller |
| |
Type |
Integrated |
| |
Video Memory |
128 MB |
| |
Video Interfaces |
VGA |
| |
Graphics Processor |
Matrox MGA G200e |
| Monitor |
| |
Monitor Type |
None. |
| Operating System / Software |
| |
OS Provided |
No operating system |
| |
Windows Server Certified |
This server is tested, tuned and certified for Windows Server 2008 R2 with OEM-branded hardware. Purchase a Reseller Option Kit to have your server solution pre-loaded. |
| Optical Storage |
| |
Type |
DVD-ROM - SATA |
| Cache Memory |
| |
Cache Per Processor |
8 MB |
| |
Installed Size |
L3 Cache - 8 MB |
| Storage Controller |
| |
Type |
1 x SAS - integrated |
| Environmental Parameters |
| |
Min Operating Temperature |
10 °C |
| |
Humidity Range Operating |
8 - 80% |
| |
Max Operating Temperature |
32 °C |
| Power |
| |
Installed Qty |
1 |
| |
Device Type |
Power supply |
| |
Nominal Voltage |
AC 120/230 V (50/60 Hz) |
| |
Power Provided |
401 Watt |
| Miscellaneous |
| |
Features |
Power-on password, boot without keyboard or mouse, U-Bolt anchoring, boot sequence control, selectable boot, predictive failure analysis (PFA), automatic server restart (ASR) |
| |
Compliant Standards |
TUV GS, CISPR 22 Class A, GOST, EN 61000-3-2, ISO 9241, EN 61000-3-3, EN55024, EN55022 Class A, CB, IEC 60950-1, EN 60950-1 |
| Networking |
| |
Type |
Integrated |
| |
Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| |
Remote Management Protocol |
IPMI 2.0 |
| |
Features |
Wake on LAN (WoL), PXE support |
| RAM |
| |
Features |
Unbuffered |
| |
Installed Size |
2 GB / 24 GB (max) |
| |
Form Factor |
DIMM 240-pin |
| |
Configuration Features |
2 x 1 GB |
| |
Memory Speed |
1333 MHz |
| |
Technology |
DDR3 SDRAM - ECC |
| |
Memory Specification Compliance |
PC3-10600 |
Manufacturer Warranty (24 months implied warranty by computeruniverse ) |
| |
Service & Support |
3 years warranty |
| |
Service & Support Details |
Limited warranty - parts and labour - 3 years - on-site - response time: next business day |
| Expansion / Connectivity |
| |
Interfaces |
6 x USB 2.0 (2 in front) 1 x serial 1 x management 1 x LAN (Gigabit Ethernet) 1 x VGA |
| |
Slots |
1 (total) / 0 (free) x CPU 6 (total) / 4 (free) x DIMM 240-pin 2 (total) / 2 (free) x PCI - full-length, full-height 2 (total) / 2 (free) x PCIe 2.0 x8 - full-length, full-height 1 (total) / 1 (free) x PCIe x1 - full-length, full-height |
| |
Bays |
4 (total) / 4 (free) x hot-swap 3.5" Slim Line 2 (total) / 1 (free) x external 5.25" x 1/2H 1 (total) / 1 (free) x external 3.5" x 1/3H |
| General |
| |
Type |
Server |
| |
Front Accessible Bays Qty |
3 |
| |
Built-in Devices |
Led panel |
| |
Hot-Swap Bays Qty |
4 |
| |
Localisation |
EMEA |
| |
Server Scalability |
1-way |
| |
Embedded Security |
Trusted Platform Module (TPM 1.2) Security Chip |
| |
Product Form Factor |
Mini tower - 5U |
