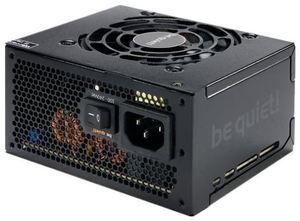

be quiet! SFX Power SFX12V 3.2
- 350 Watt, SFX, active PFC
- 2x SATA, 3x Molex, 1x PCIe 6pin
- active cooling, 1x 80 mm fan
- 80 PLUS certificate
€ 54,90Product ready for shipping
ready for shipping in 1-2 days
SFX Power is an ultra-efficient power supply unit that reliably supplies your PC with power and energy in the same way as a human heart supplies the body with energy. Compact and with the latest use of technology SFX Power meets the demands of a premium product and of course with the customary be quiet! quality low noise levels.
SFX Power are powerful hearts from be quiet! for compact PC systems.
The SFX Power power supply units provide your PC with maximum power. But you don't have to compromise on brand, quality or security. In addition to that you are helping the environment, because in developing the SFX Power they place great value on the efficient use of energy. The result is a high level of energy efficiency of up to 86%.
Show product family informations
| |
Product Description |
Be quiet! SFX Power BN134 - power supply - 350 Watt |
| |
EAN |
4260052181676
|
| |
Manufacturer Warranty |
2 years warranty (24 months implied warranty by computeruniverse ) |
| |
Dimensions (WxDxH) |
12.5 cm x 10 cm x 6.4 cm |
| |
Device Type |
Power supply - active Power Factor Correction (PFC) - internal |
| |
Output Voltage |
+3.3, +5, ±12 V |
| |
Output Connector(s) |
1 x power 24 pin ATX with detachable 4 pin section 1 x power 4 pin ATX12V connector 3 x 4 PIN internal power 1 x 4 PIN mini-power connector 2 x 15 pin Serial ATA power 1 x 6 pin internal power |
| |
Specification Compliance |
SFX12V 3.2 |
| |
Environmental Standards |
ENERGY STAR |
| |
Cooling System |
80 mm fan |
| |
Power Capacity |
350 Watt |
| |
80 PLUS Certification |
80 PLUS |
|
| Environmental Standards |
| |
ENERGY STAR |
Yes |
| Dimensions & Weight |
| |
Height |
6.4 cm |
| |
Depth |
10 cm |
| |
Width |
12.5 cm |
| Power Device |
| |
Power Capacity |
350 Watt |
| |
Frequency Required |
50 - 60 Hz |
| |
Input Voltage Range |
AC 100 - 240 V |
| |
Output Voltage |
+3.3, +5, ±12 V |
| |
80 PLUS Certification |
80 PLUS |
| |
Output Current |
+3.3V - 20 A +5V - 22 A +12V1 - 14 A +12V2 - 16 A -12V - 0.5 A +5VSB - 2.5 A |
| |
Power Output Connectors Details |
1 x power 24 pin ATX with detachable 4 pin section 1 x power 4 pin ATX12V connector 3 x 4 PIN internal power 1 x 4 PIN mini-power connector 2 x 15 pin Serial ATA power 1 x 6 pin internal power |
| Miscellaneous |
| |
Cooling System |
80 mm fan |
| |
Features |
Over current protection, over voltage protection, overpower protection, undervoltage protection, dual 12V rails, short-circuit protection |
| |
MTBF |
100,000 hours |
| |
Compliant Standards |
TUV, DEMKO, FIMKO, NEMKO, SEMKO, CB, RoHS, WEEE |
Manufacturer Warranty (24 months implied warranty by computeruniverse ) |
| |
Service & Support |
2 years warranty |
| |
Service & Support Details |
Limited warranty - 2 years |
| General |
| |
Device Type |
Power supply - active Power Factor Correction (PFC) - internal |
| |
Specification Compliance |
SFX12V 3.2 |
