Product Description |

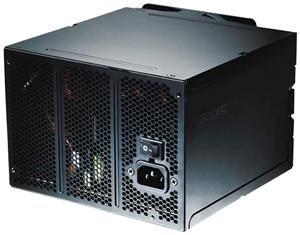

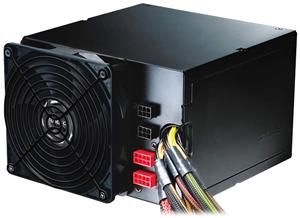

Antec CP-850 - power supply - 850 Watt |
| |
EAN |
0761345068802
|
| |
Manufacturer Warranty |
5 years warranty (24 months implied warranty by computeruniverse ) |
| |
Dimensions (WxDxH) |
17.5 cm x 20.1 cm x 11.9 cm |
| |
Localisation |
Europe |
| |
Device Type |
Power supply - active Power Factor Correction (PFC) - internal |
| |
Input Voltage |
AC 100-240 V |
| |
Output Voltage |
+3.3, +5, ±12 V |
| |
Output Connector(s) |
2 x 6 pin PCI Express power 2 x 8 pin PCI Express power with detachable 2 pin section |
| |
Specification Compliance |
ATX12V 2.3/ EPS12V 2.91 |
| |
Cooling System |
120 mm fan |
| |
Power Capacity |
850 Watt |
| |
80 PLUS Certification |
80 PLUS |
|
| Dimensions & Weight |
| |
Height |
11.9 cm |
| |
Width |
17.5 cm |
| |
Depth |
20.1 cm |
| Power Device |
| |
Input Connector(s) |
1 |
| |
Input Voltage Margin |
± 10% |
| |
Input Voltage |
AC 100-240 V |
| |
Power Capacity |
850 Watt |
| |
Frequency Required |
47 - 63 Hz |
| |
Output Voltage |
+3.3, +5, ±12 V |
| |
80 PLUS Certification |
80 PLUS |
| |
Power Output Connectors Details |
2 x 6 pin PCI Express power 2 x 8 pin PCI Express power with detachable 2 pin section |
| |
Output Current |
+5V - 0.5 A / 30 A +12V1 - 0.2 A / 22 A +12V2 - 0.4 A / 22 A +12V3 - 0 A / 25 A +12V4 - 0 A / 25 A -12V - 0 A / 0.6 A +5VSB - 0 A / 3 A +3.3V - 0.3 A / 24 A |
| Environmental Parameters |
| |
Min Operating Temperature |
0 °C |
| |
Max Operating Temperature |
50 °C |
| Miscellaneous |
| |
Cooling System |
120 mm fan |
| |
Features |
Over current protection, over voltage protection, SLI ready, cable management, quad 12V rails, short-circuit protection |
| |
MTBF |
100,000 hours |
| |
Compliant Standards |
UL, TUV, C-Tick, BSMI, CB, CCC, FCC, RoHS |
Manufacturer Warranty (24 months implied warranty by computeruniverse ) |
| |
Service & Support |
5 years warranty |
| |
Service & Support Details |
Limited warranty - parts and labour - 5 years |
| General |
| |
Localisation |
Europe |
| |
Device Type |
Power supply - active Power Factor Correction (PFC) - internal |
| |
Specification Compliance |
ATX12V 2.3/ EPS12V 2.91 |
