Product Description |
D-Link HorstBox Standard DVA-G3342SD - wireless router - ISDN/DSL - 802.11b/g - desktop |
| |
EAN |
0790069298448
|
| |
Manufacturer Warranty |
5 years warranty (24 months implied warranty by computeruniverse ) |
| |
Features |
Firewall protection, DMZ port, auto-sensing per device, dynamic IP address assignment , DHCP support, NAT support, NAPT support, auto-negotiation, RARP support, ARP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Stateful Packet Inspection (SPI), dynamic DNS server, print server, VPN passthrough, Quality of Service (QoS) |
| |
Localisation |
Germany |
| |
Device Type |
Wireless router - ISDN / DSL modem combo - 4-port switch (integrated) |
| |
Enclosure Type |
Desktop |
| |
Data Transfer Rate |
54 Mbps |
| |
Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.1x |
| |
Data Link Protocol |
Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g |
| |
Network / Transport Protocol |
TCP/IP, ICMP/IP, PPPoE, PPPoA |
| |
Remote Management Protocol |
HTTP |
| |
Digital Signaling Protocol |
ADSL, ADSL2, ADSL2+ |
| |
Routing Protocol |
RIP-1, RIP-2, static IP routing |
| |
Frequency Band |
2.4 GHz |
| |
VoIP Protocols |
SIP |
| |
Telephony Interfaces |
2 phone (FXS), 1 line (FXO) |
|
| IP Telephony |
| |
VoIP Protocols |
SIP |
| |
IP Telephony Features |
Echo cancellation (G.168) |
| |
Voice Codecs |
G.729a, G.711u, G.711a, G.726 |
| |
Telephony Interfaces |
2 phone (FXS), 1 line (FXO) |
| Aerial |
| |
Antenna Qty |
1 |
| |
Directivity |
Omni-directional |
| Communications |
| |
Type |
ISDN / DSL modem combo |
| |
Max Transfer Rate |
24 Mbps |
| |
Digital Signaling Protocol |
ADSL, ADSL2, ADSL2+ |
| |
Protocols & Specifications |
ITU G.992.2 (G.Lite), ITU G.994.1 (G.hs), ITU G.992.3 (G.DMT.bis), ITU G.992.4 (G.lite.bis), ITU G.992.5, ITU G.992.1 (G.DMT) Annex B |
| Environmental Parameters |
| |
Min Operating Temperature |
0 °C |
| |
Max Operating Temperature |
40 °C |
| |
Humidity Range Operating |
5 - 95% |
| Power |
| |
Power Device |
Power adapter - external |
| Miscellaneous |
| |
Localisation |
Germany |
| |
Compliant Standards |
CSA, TUV, EN 60950, UL 1950, IEC 60950, EMC, FCC Part 15 |
Manufacturer Warranty (24 months implied warranty by computeruniverse ) |
| |
Service & Support |
5 years warranty |
| |
Service & Support Details |
Limited warranty - 5 years |
| Expansion / Connectivity |
| |
Interfaces |

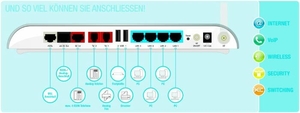

LAN : 4 x 10Base-T/100Base-TX - RJ-45 Hi-Speed USB : 2 x 4 PIN USB Type A Phone line : 2 x FXS - RJ-11 WAN : 1 x ISDN S0 - RJ-11 WAN : 1 x ADSL2+ - RJ-11 WAN : 1 x ISDN |
| General |
| |
Enclosure Type |
Desktop |
| |
Remote Management Protocol |
HTTP |
| |
Built-in Devices |
Print server |
| |
Status Indicators |
Port status, power |
| |
Frequency Band |
2.4 GHz |
| |
Data Transfer Rate |
54 Mbps |
| |
Routing Protocol |
RIP-1, RIP-2, static IP routing |
| |
Data Link Protocol |
Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g |
| |
Authentication Method |
Radio Service Set ID (SSID) |
| |
Connectivity Technology |
Wireless, wired |
| |
Network / Transport Protocol |
TCP/IP, ICMP/IP, PPPoE, PPPoA |
| |
Encryption Algorithm |
128-bit WEP, 64-bit WEP, TKIP, WPA, WPA2, WPA-PSK |
| |
Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.1x |
| |
Features |
Firewall protection, DMZ port, auto-sensing per device, dynamic IP address assignment , DHCP support, NAT support, NAPT support, auto-negotiation, RARP support, ARP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Stateful Packet Inspection (SPI), dynamic DNS server, print server, VPN passthrough, Quality of Service (QoS) |
| |
Device Type |
Wireless router - 4-port switch (integrated) |
